Запчасти Case 850L (05-09) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING

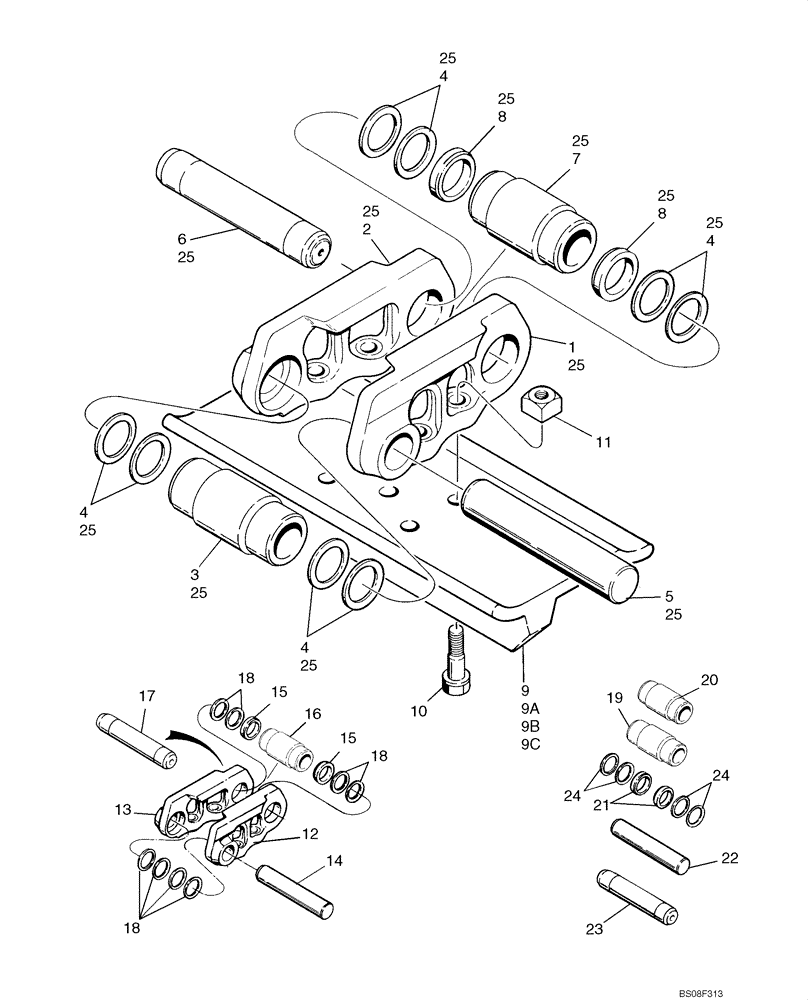

Схема запчастей Case 850L - (05-09) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING
24
8
18
25
25
13
12
20
15
2
7
18
3
9a
25
8
4
25
19
22
9
21
25
5
9c
18
6
25
23
17
25
4
4
25
11
4
9b
25
25
1
15
16
25
14
10
25
24

Артикул

Название

Примечание

Количество

418614A1

CRAWLER TRACK ASSY

457 mm (18 inch); Chain; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9, 10, 11

2шт.

418617A1

CRAWLER TRACK ASSY

508 mm (20 inch); Chain; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9A, 10, 11

2шт.

418621A1

CRAWLER TRACK ASSY

610 mm (24 inch); Chain; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9B, 10, 11

2шт.

418624A1

CRAWLER TRACK ASSY

711 mm (28 inch); Chain; Incl. Shoes; Incl. 407015A1, Ref 1 - 8; 9C, 10, 11

2шт.

407015A1

TRACK CHAIN

Incl. Ref 1 - 8; Order 418497A1, Ref 25

1шт.

1

295178A2

LINK

Right-Hand

40шт.

2

295177A2

LINK

Left-Hand

40шт.

3

R56517

BUSHING

123,5 mm (4-7/8 in) OD; Link

39шт.

4

R50211

WASHER

160шт.

5

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm

39шт.

6

R54349

PIN,33.04mm OD x 183.5mm L

Master Link

1шт.

7

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD; Master Link

1шт.

8

R50210

SPACER

2шт.

9

295181A1

TRACK SHOE

457 mm (18 inch)

40шт.

9a

300199A1

SHOE

508 mm (20 inch)

40шт.

9b

295182A1

SHOE

610 mm (24 inch)

40шт.

9c

295183A1

SHOE

711 mm (28 inch)

40шт.

10

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8

160шт.

11

R25688

SQUARE NUT

5/8 NF

160шт.

REF

INSTRUCTION

CHAIN UNIT KIT

1шт.

300214A2

SEAL KIT

Incl. Ref 12 - 18, Instructions

1шт.

12

295178A2

LINK

Right-Hand

1шт.

13

295177A2

LINK

Left-Hand

1шт.

14

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm

2шт.

15

R50210

SPACER

2шт.

16

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD; Master Link

1шт.

17

R54349

PIN,33.04mm OD x 183.5mm L

Master Link

1шт.

18

R50211

WASHER

8шт.

REF

INSTRUCTION

PIN AND BUSHING KIT - SERVICES COMPLETE TRACK CHAIN FOR BOTH SIDES OF TRACTOR

1шт.

434144A1

SERVICE KIT

Pin and Bushing Kit; Incl. Ref 19 - 24

1шт.

19

R56517

BUSHING

123,5 mm (4-7/8 in) OD; Standard Pin

78шт.

20

R56516

BUSHING,33.8mm ID x 56.9mm OD x 107.6mm L

108 mm (4-1/4 in) OD; Master Pin

2шт.

21

R50210

SPACER

4шт.

22

R49792

PIN,33.48mm OD x 183.5mm L

183 x 33 mm; Standard

78шт.

23

R54281

PIN,33.41mm OD x 183.5mm L

Master Link

2шт.

24

R50211

WASHER

312шт.

REF

INSTRUCTION

LINK KIT

1шт.

25

418497A1

TRACK CHAIN

Link Service Kit; Incl. 407015A1, Ref 1 - 8

1шт.

Выбрано товаров: 38
