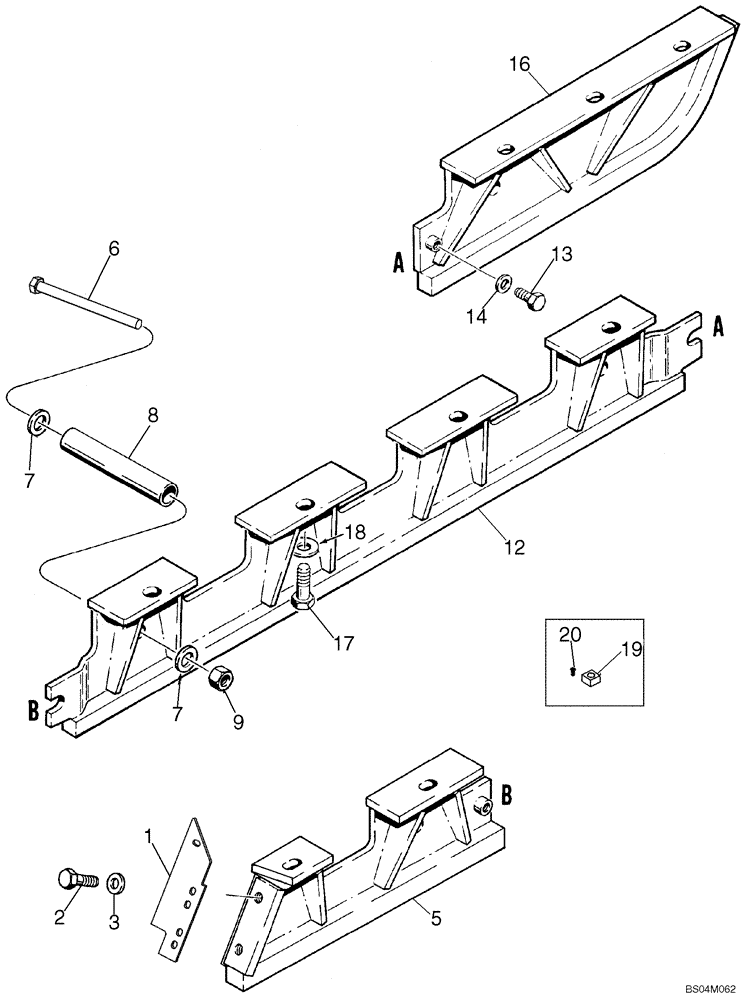

Запчасти Case 850L (05-08) - TRACK GUARDS (11) - TRACKS/STEERING

1

87354004

GUARD, Rear

4шт.

2

409-91024

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

20шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

20шт.

4

419379A2

GUARD ASSY.

Left-Hand Rear; Not Illustrated

2шт.

5

419380A2

GUARD ASSY.

Right-Hand Rear

2шт.

6

413-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5

8шт.

7

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

8

D35698

SPACER

8шт.

9

231-41112

LOCK NUT,3/4"-10, GB

8шт.

12

431197A2

GUARD ASSY.

Center

4шт.

13

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

14

195-81030

WASHER

17/32 x 1-1/2 x 3/16

8шт.

15

419377A1

GUARD ASSY.

Left-Hand Front; Not Illustrated

2шт.

16

419378A1

GUARD ASSY.

Right-Hand Front

2шт.

17

87018375

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8, Full Thd

36шт.

18

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

36шт.

19

129-860

SQUARE NUT,Sq, 5/8"-11

4шт.

20

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.
