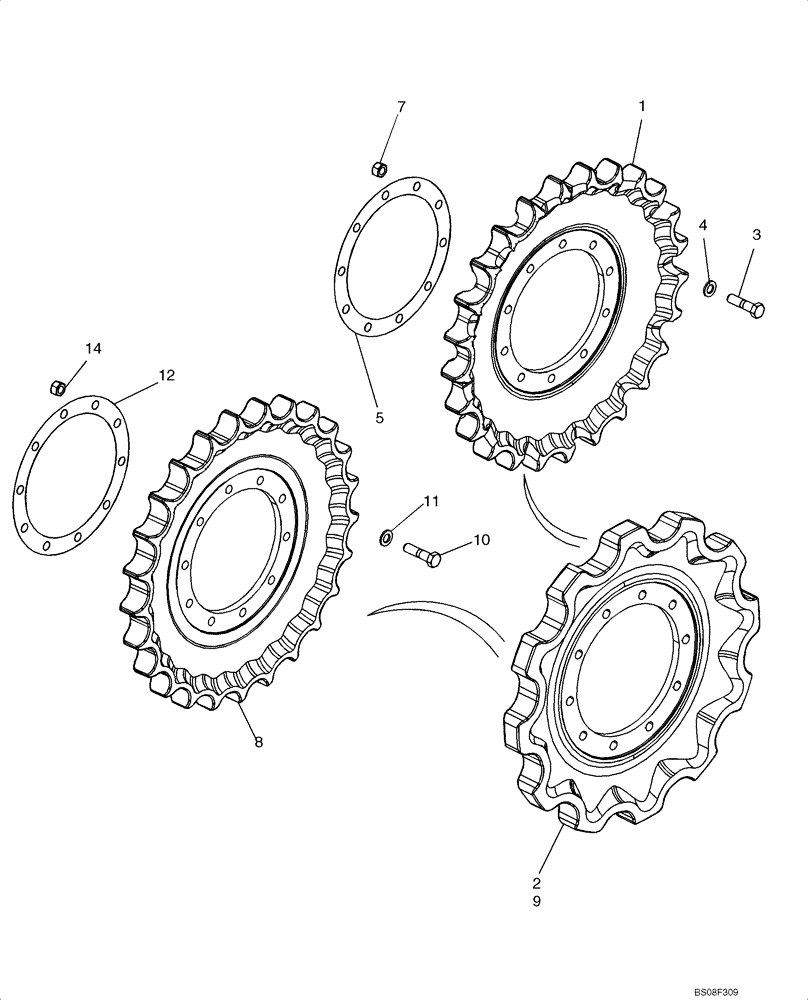

Запчасти Case 850L (05-03) - SPROCKET, TRACK (11) - TRACKS/STEERING

REF

INSTRUCTION

1448 mm (57 INCH) GAUGE LONG TRACK (LT) MODELS

1шт.

1

412164A1

DRIVING SPROCKET

25T; Standard Case Lubricated Track (CLT); Not Illustrated

2шт.

1

404060A1

DRIVING SPROCKET

25T; Relieved 57 and 62 gauge; Replaces 412166A1; RECOMMENDED FOR PACKING CONDITIONS ONLY

2шт.

2

414799A1

DRIVING SPROCKET

12T; Used on Models With Extended Life Track Chain (ELT); With 57" & 62" between sprocket centers, Serial Range: side-side

2шт.

3

R56341

BOLT

3/4 x 3

20шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

5

404152A1

SHIM

1шт.

7

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.

REF

INSTRUCTION

1702 mm (67 INCH) GAUGE WIDE TRACK (WT) OR LOW GROUND PRESSURE (LGP) MODELS

1шт.

8

412061A1

DRIVING SPROCKET

25T; Standard Case Lubricated Track (CLT)

2шт.

8

403559A1

DRIVING SPROCKET

25T; Relieved 67 and 70 Gauge ; Not Illustrated; Replaces 412163A1; RECOMMENDED FOR PACKING CONDITIONS ONLY

2шт.

9

414798A1

DRIVING SPROCKET

12T; Used on Models With Extended Life Track Chain (ELT); With 67" & 70" between sprocket centers, Serial Range: side-side

2шт.

10

R56341

BOLT

3/4 x 3

20шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

12

404152A1

SHIM

1шт.

14

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

No. 242, 50 ml

1шт.
