Запчасти Case 850L (05-02A) - FRAME, TRACK - COVERS (11) - TRACKS/STEERING

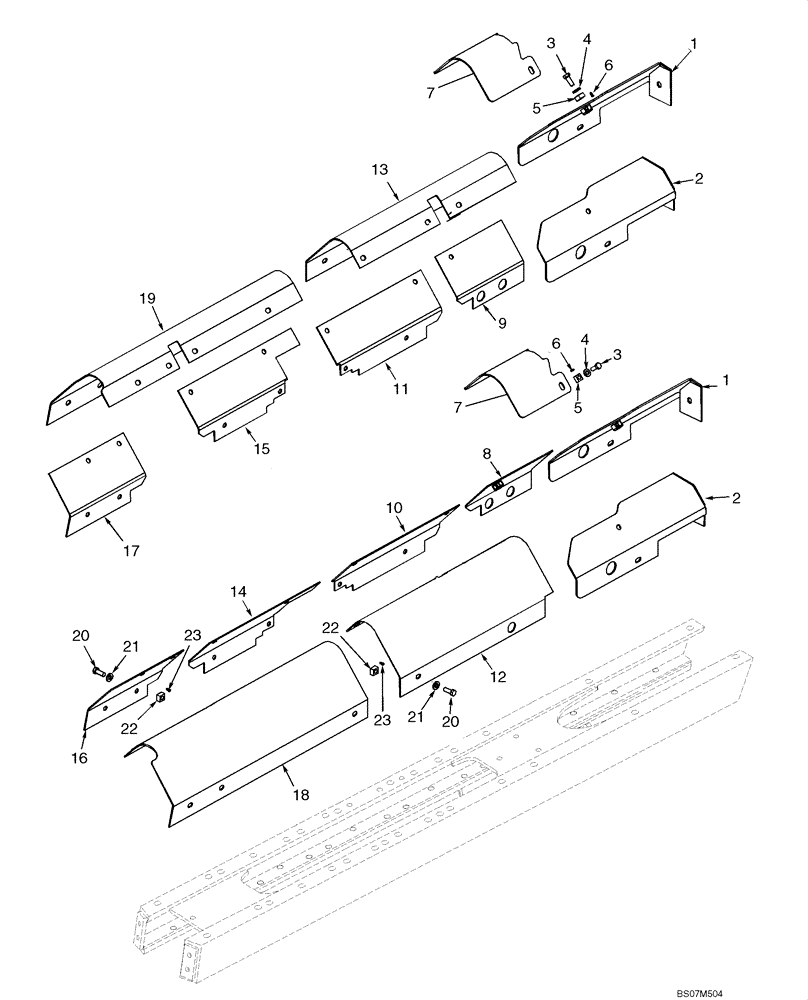

Схема запчастей Case 850L - (05-02A) - FRAME, TRACK - COVERS (11) - TRACKS/STEERING
16
2
5
18
1
1
22
15
9
3
6
17
10
11
21
22
2
12
7
3
8
14
13
6
21
4
20
23
19
23
7
20
5
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Larger Cutouts Allowing 87565113 Track Mount Spacer To Be Used Between Main Frame and Track Frame; See Fig.09-08, Ref 30

1шт.

87566807

Kit, Track Covers; Incl. 1, 2, 7A, 8 - 19, Not Serviced, Order Components

1шт.

1

435817A1

COVER ASSY

Idler; Left-Hand

2шт.

2

435818A1

COVER ASSY

Idler; Right-Hand

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

5

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

7

87566805

TOP COVER

ASSY, Idler, Lenght 260.4 mm (10 1/4 in)

2шт.

8

87589260

COVER ASSY

Right-Hand; Inner

1шт.

9

87589261

COVER ASSY

Left-Hand; Inner

1шт.

10

87589263

COVER ASSY

Right-Hand; Inner

1шт.

11

87589264

COVER ASSY

Left-Hand; Inner

1шт.

12

87589269

COVER ASSY

Right-Hand; Outer

1шт.

13

87589270

COVER ASSY

Left-Hand; Outer

1шт.

14

87587382

COVER ASSY

Right-Hand; Inner

1шт.

15

87587381

COVER ASSY

Left-Hand; Inner

1шт.

16

87582605

COVER ASSY

Cover Assy; Right-Hand; Inner

1шт.

17

87582604

COVER ASSY

Cover Assy; Left-Hand; Inner

1шт.

18

87587399

COVER ASSY

Right-Hand; Outer

1шт.

19

87587400

COVER ASSY

Left-Hand; Outer

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

44шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

22

129-857

SQUARE NUT,Sq, 1/2"-13

40шт.

23

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

44шт.

Выбрано товаров: 25
