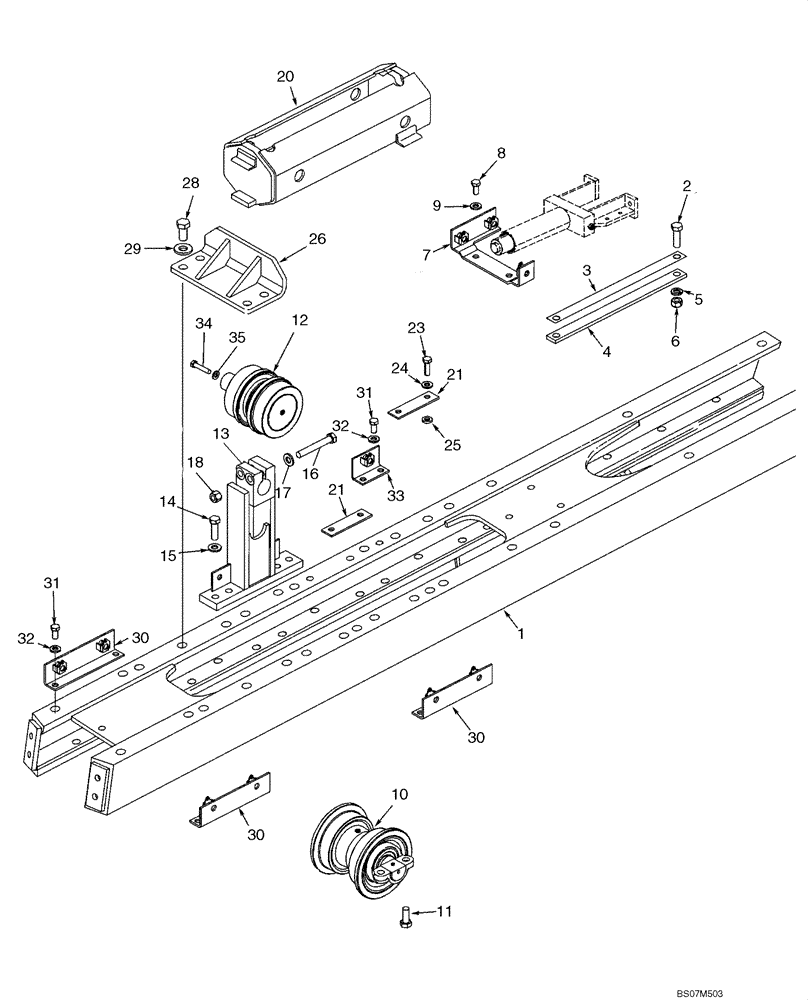

Запчасти Case 850L (05-01) - FRAME, TRACK - ROLLER AND RECOIL HOUSING (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
87559518
FRAME
FRAME, TrackTrack; U Shaped End Bolt Holes are a Distance of 449.5 mm (17 3/4 in) a part
2шт.
2
413-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
8шт.
3
87559519
SHIM
Idler Wear Strip; Length 485 mm (19 1/8 in) a part, Bolt Holes are a Distamce of 449.5 mm (17 3/4 in) a part
1шт.
4
87559520
BAR
Idler Wear; Length 485 mm (19 1/8 in) a part, Bolt Holes are a Distamce of 449.5 mm (17 3/4 in) a part
4шт.
5
492-11062
BEARING WASHER,5/8"
8шт.
6
425-1010
NUT,5/8"-11, G5
8шт.
7
431877A1
BRACKET
Right-Hand; Track Adjuster
1шт.
7a
431795A1
BRACKET
Left-Hand; Track Adjuster; Not Illustrated
1шт.
8
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
9
496-21053
WASHER,17/32" x 1 1/16" x .134"
4шт.
10
87581584
TRACK ROLLER,222mm OD x 176mm W
See Figure 05-07
14шт.
11
409-91248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
56шт.
12
ROLLER ASSY.,Carrier
ROLLER, TRACK, With Hole In Roller Shaft; Component Parts Not Serviced Separately
2шт.
13
87353994
BRACKET, SUPPORTING
2шт.
14
426-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
8шт.
15
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
8шт.
16
426-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 8
4шт.
17
496-81004
WASHER,41/64" x 1.047" x .134", HDN
4шт.
18
232-41410
LOCK NUT,5/8"-11, GC
4шт.
20
419386A1
HOUSING ASSY.
Recoil; Component Parts Not Serviced Separately
2шт.
21
419387A1
STRAP
Plate
4шт.
23
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
8шт.
24
496-21053
WASHER,17/32" x 1 1/16" x .134"
8шт.
26
419391A2
BRACKET
Stop; Recoil
2шт.
28
426-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8
8шт.
29
496-11081
WASHER,13/16" x 1 1/2" x .134", HDN
8шт.
30
430453A1
BRACKET
6шт.
31
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
20шт.
32
496-21053
WASHER,17/32" x 1 1/16" x .134"
20шт.
33
430454A1
BRACKET
4шт.
34
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
35
495-91167
WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk
2шт.
Выбрано товаров: 33
