Запчасти Case 850L (09-45) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

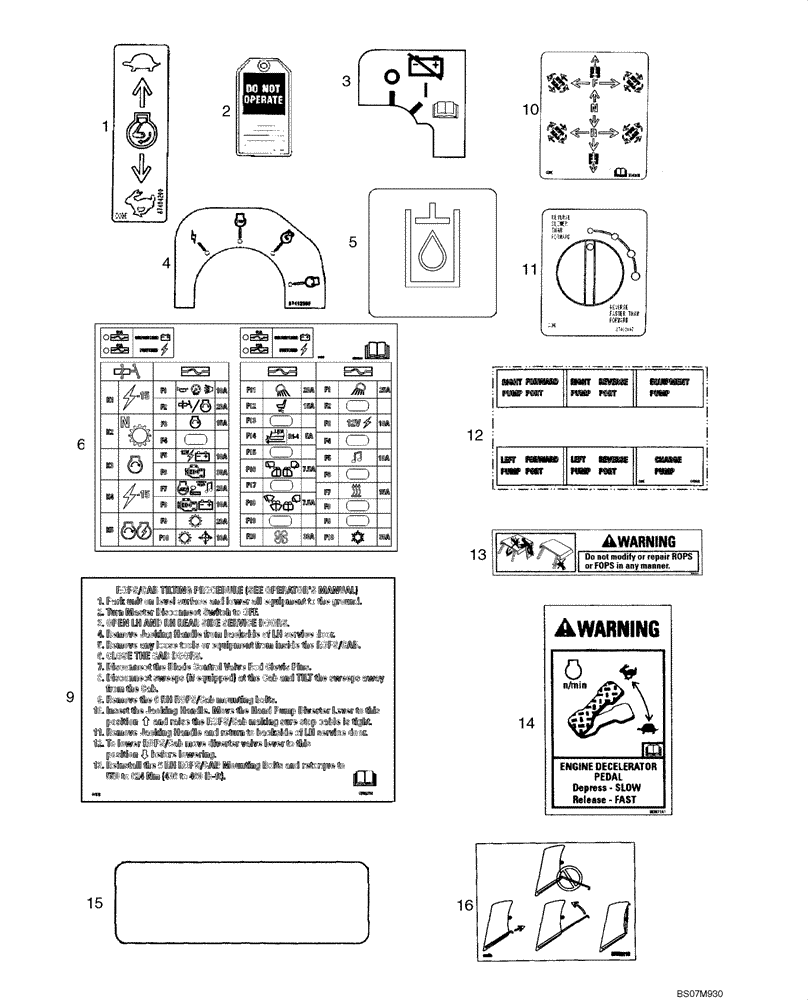

Схема запчастей Case 850L - (09-45) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS
10
5
14
16
6
11
3
12
1
9
2
4
13
15

Артикул

Название

Примечание

Количество

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

6

87737209

DECAL

Fuse & Relays; No Longer Available Order 87480629, Fuse & Relay Decal; Ref 6A

1шт.

6a

87480629

DECAL

Fuse & Relays; No Longer Available Order 87488059, Fuse & Relay Decal; Ref 6B

1шт.

6b

87488059

DECAL

Fuse & Relays

1шт.

9

87712656

DECAL

Canopy/Cab Tilting Procedure

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87422186

DECAL

Reverse Controller

1шт.

12

87421177

DECAL

Diagnostics

1шт.

13

87454610

DECAL

Warning, Do Not Modify or Repair ROPS or FOPS In Any Manner

2шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in)

2шт.

16

87550110

DECAL

Console Lockup Kit Instruction 50.0 mm x 66.0 mm

1шт.

Выбрано товаров: 15
