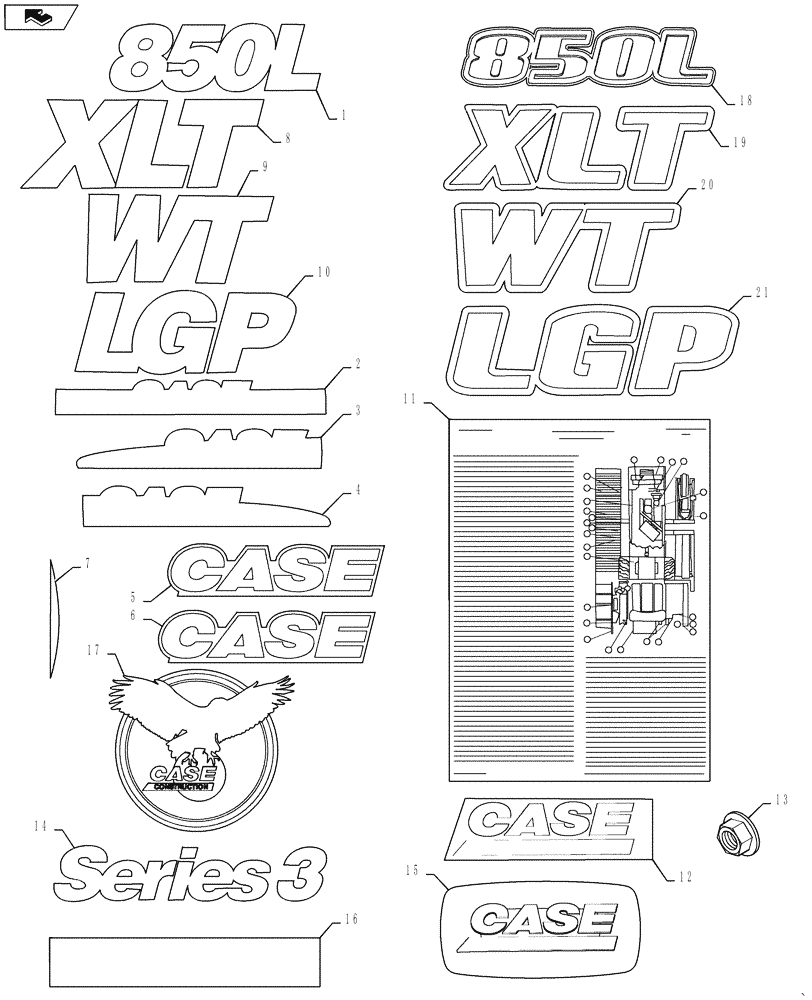

Запчасти Case 850L (09-44) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

1

87712208

DECAL

Model, 850L, Serial Range: -NBDC80104

2шт.

2

87725675

DECAL

Case, Rear, Serial Range: -NBDC80104

1шт.

3

86992258

DECAL

Case, Left Rear, Serial Range: -NBDC80104

1шт.

4

86992259

DECAL

Case, Right Rear, Serial Range: -NBDC80104

1шт.

5

87408280

DECAL

Case; 722 x 164 mm; Rear Side, Serial Range: -NBDC80104

2шт.

6

87408281

DECAL

Case; 786 x 182 mm; Rear, Serial Range: -NBDC80104

1шт.

6

84468364

DECAL

Case; 983 x 250 mm, Start Serial: NBDC80105

3шт.

7

87407618

DECAL

Edge

2шт.

8

87408276

DECAL

Extended Long Track (XLT) Models, Serial Range: -NBDC80104

2шт.

9

87408275

DECAL

Wide Track (WT) Models, Serial Range: -NBDC80104

2шт.

10

87408279

DECAL

Low Ground Pressure (LGP) Models, Serial Range: -NBDC80104

2шт.

11

87750569

DECAL

Maintenance Schedule Decal; Spanish

1шт.

12

186989A1

EMBLEM

Emblem, Case; Front Grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Case Emblem

2шт.

14

87412815

DECAL

Series 3

2шт.

15

87415931

DECAL

Case, Engine

2шт.

16

T41159

TAPE,82mm x 35mm H

1шт.

17

84468362

DECAL,194mm x 170mm H

Eagle, Start Serial: NBDC80105

2шт.

18

84531857

DECAL

Model, 850L, Start Serial: NBDC80105

2шт.

19

84468414

DECAL

XLT, Start Serial: NBDC80105

2шт.

20

84468428

DECAL

WT, Start Serial: NBDC80105

2шт.

21

84468429

DECAL

LGP, Start Serial: NBDC80105

2шт.
