Запчасти Case 850L (09-43) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

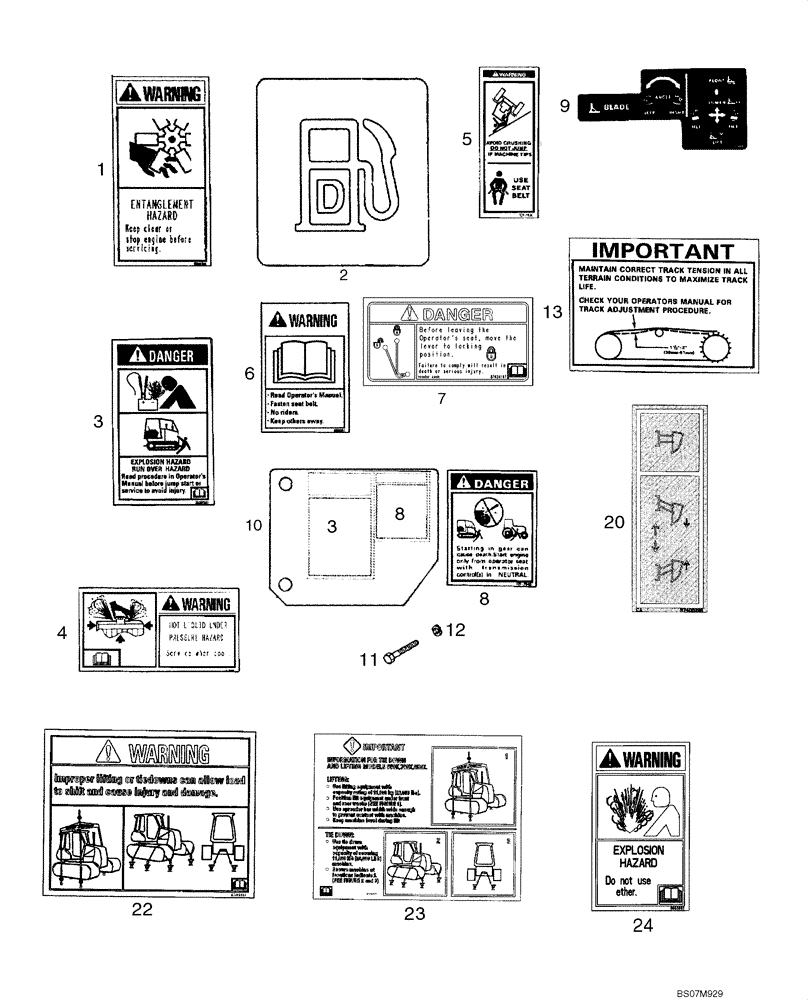

Схема запчастей Case 850L - (09-43) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
9
11
23
8
7
8
22
24
3
10
12
5
4
3
13
6
2
1
20

Артикул

Название

Примечание

Количество

1

334033A1

DECAL

Warning; Entanglement Hazard

2шт.

2

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

3

389737A1

DECAL

Danger; Jump Start, Battery

2шт.

4

389742A1

DECAL

Warning; Radiator Cap

1шт.

5

124269A1

DECAL

Warning; Do Not Jump

1шт.

6

87352601

DECAL

Warning; Read the Operator's Manual

1шт.

7

87634108

DECAL

Safety Lever

2шт.

8

124279A1

DECAL

Danger; Engine Start Warning

1шт.

9

87420954

DECAL

Dozer Blade Control Pattern

1шт.

10

87451954

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With Ref 3, 8, 11, 12

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

87355177

DECAL

Important; Track Tension

1шт.

20

87408298

DECAL

Ripper Control Pattern

1шт.

22

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

23

NSS

NOT SOLD SEPARAT

North American Decal

1шт.

24

8603093

WARNING DECAL

Explosion Hazard, Do Not Use Ether

1шт.

Выбрано товаров: 17
