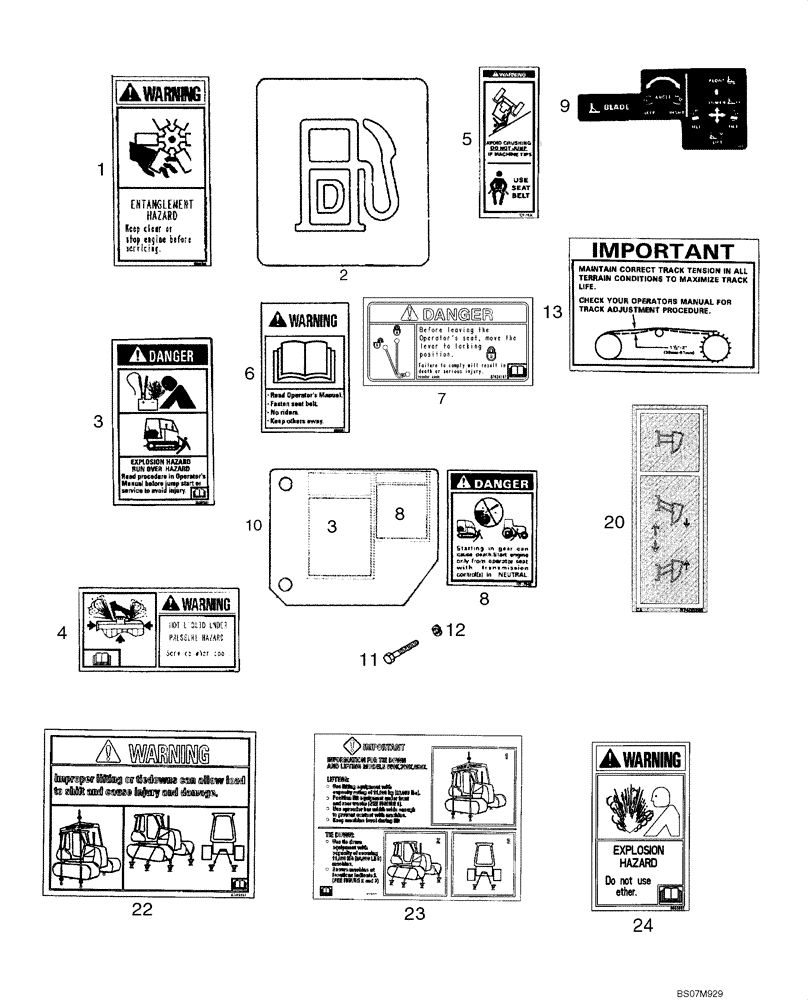

Запчасти Case 850L (09-40) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

332512A1

DECAL

Warning; Entanglement Hazard

2шт.

2

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

3

383973A1

DECAL,60mm x 100mm H

Danger; Jump Start, Battery

2шт.

4

329044A1

WARNING DECAL,168mm x 88mm H

Radiator Cap

1шт.

5

321-7030

WARNING DECAL

Do Not Jump

1шт.

6

382622A1

DECAL,60mm x 90mm H

Warning; Read the Operator's Manual

1шт.

7

87634107

DECAL

Safety Lever

2шт.

8

321-7040

DANGER DECAL

Engine Start Warning

1шт.

9

87420954

DECAL

Dozer Blade Control Pattern

1шт.

10

87451954

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With Ref 3, 8, 11, 12

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

87412050

DECAL

Important; Track Tension

1шт.

20

87422190

DECAL

Ripper Control Pattern

1шт.

22

87416964

DECAL,110mm x 85mm H

Lift And Tie Down Warning

1шт.

23

87416965

DECAL

Lift And Tie Down Instructions

1шт.

24

8603092

WARNING DECAL,55mm x 95mm H

Warning, Explosion Hazard, Do Not Use Ether

1шт.
