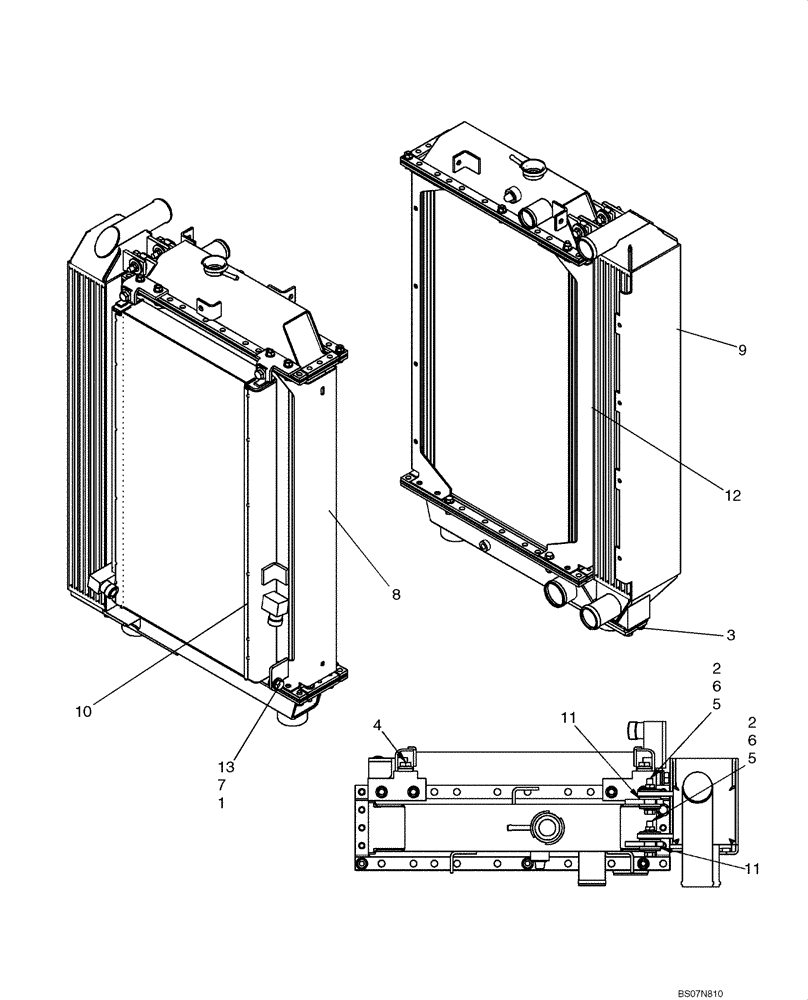

Запчасти Case 850L (02-04) - RADIATOR - COOLING (02) - ENGINE

1

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

2

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

3

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

4

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

5

905-10050

SERRATED BOLT

BOLT, Hex, M10 x 50

2шт.

6

12644301

WASHER,M10 x 35 x 3

4шт.

7

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

8

87747994

RADIATOR

Assy; Replaces 87731427

1шт.

9

87741901

COOLER ASSY.

COOLER A/, Air Tier 3; Replaces 87731428

1шт.

10

87731429

OIL COOLER

COOLER A/, Oil Tier 3, Core

1шт.

11

87731497

GROMMET

2шт.

12

87731509

SEAL

SEAL, Radiator to Oil Cooler

1шт.

13

SA2172

SPACER,3/8" Pipe x 1/2"

2шт.
