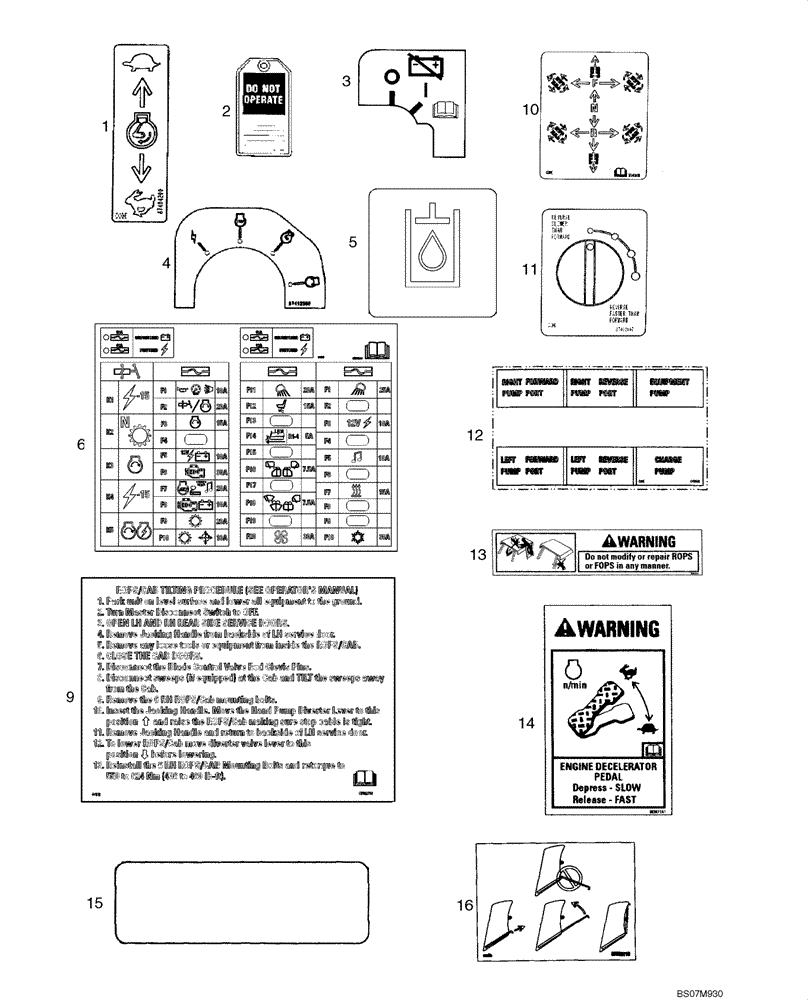

Запчасти Case 850L (09-39) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

6

87737209

DECAL

Fuse & Relays; No Longer Available Order 87480629, Fuse & Relay Decal; Ref 6A

1шт.

6a

87480629

DECAL

Fuse & Relays; No Longer Available Order 87488059, Fuse & Relay Decal; Ref 6B

1шт.

6b

87488059

DECAL

Fuse & Relays

1шт.

9

87712654

DECAL

Canopy/Cab Tilting Procedure

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87422186

DECAL

Reverse Controller

1шт.

12

87435632

DECAL

Diagnostics

1шт.

13

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify or Repair ROPS or FOPS In Any Manner

2шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in)

2шт.

16

87550110

DECAL

Console Lockup Kit Instruction 50.0 mm x 66.0 mm

1шт.
