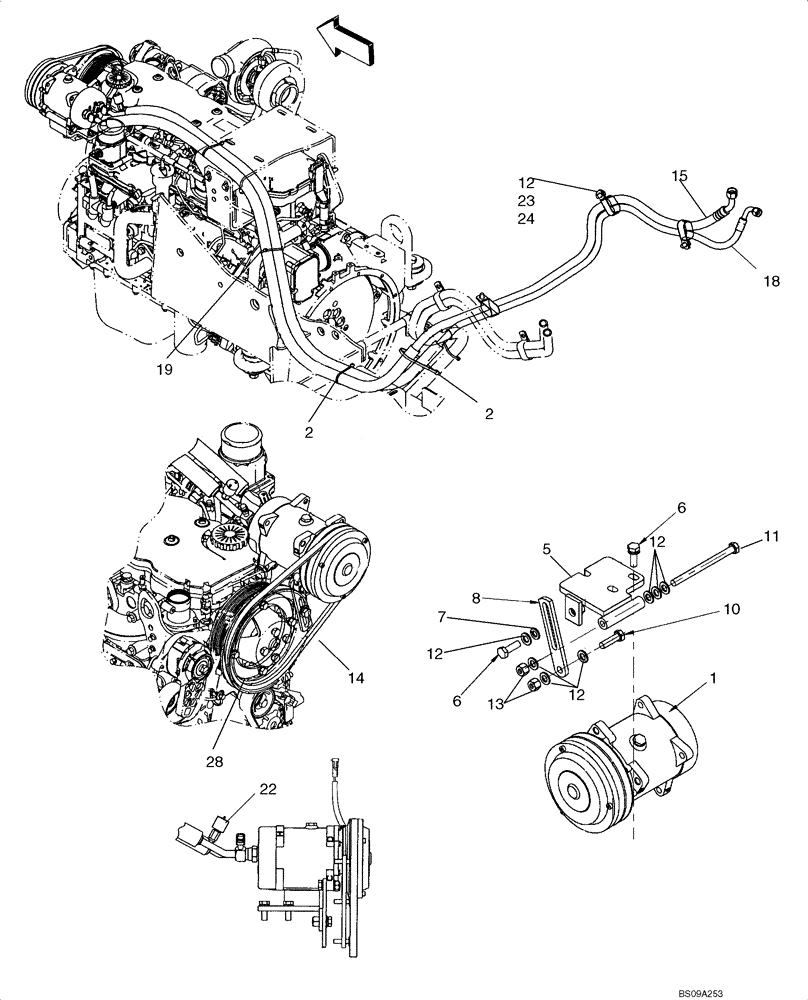

Запчасти Case 850L (09-35) - CAB- AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

86993462

AIRCOND. COMPRESSOR

12 v

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value, 12V

1шт.

1

86993462R

REMAN-COMPRESSOR

850L TIER 3 (1/08-)

1шт.

1

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

1

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

1

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1

1999755C3R

REMAN-A/C COMPRESSOR

Remanufactured

1шт.

1

1999755C2C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

5

87628433

BRACKET

Compressor Support

1шт.

6

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

7

892-11010

LOCK WASHER,M10

4-1шт.

8

84716C1

SUPPORT

Brace Freon Comp Bracket

1шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1-2шт.

11

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10-7шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

87492321

V-BELT,12.70 mm W x 1029.00 mm L

Replaces 87755028, Air Conditioner; Replaces 87628434 AC Belt, 1105 mm (43-1/2 in); Used On Some Models

1шт.

15

87496153

HOSE ASSY.

HOSE ASSY., A/C Suction Hose; Replaces 87598764

1шт.

18

87598763

HOSE ASSY.

HOSE ASSY., A/C Discharge Hose; Replaces 87598763

1шт.

19

87719002

SLEEVE

SLEEVE, 900 mm

2шт.

22

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulated, 25.4 mm Dia

3шт.

28

87439610

PULLEY

I.D. 107, O.D. 143, AC Pulley Spacer; Replaces 87442369, Pulley I.D. 139.7, O.D. 171.45; Used On Some Models; If Used

1шт.

NSS

NOT SOLD SEPARAT

Pulley And Hardware Comes On With The Engine

1шт.
