Запчасти Case 850L (09-31) - CAB - MIRROR, DOME LAMP, ANTENNA AND RADIO MOUNT (09) - CHASSIS/ATTACHMENTS

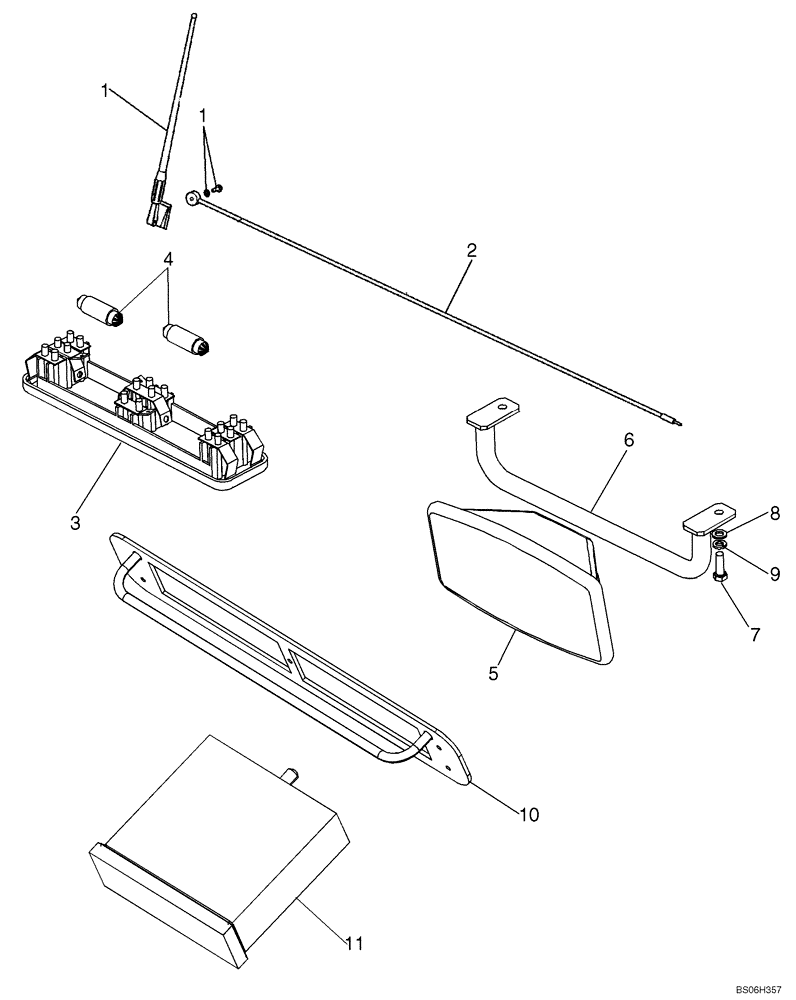

Схема запчастей Case 850L - (09-31) - CAB - MIRROR, DOME LAMP, ANTENNA AND RADIO MOUNT (09) - CHASSIS/ATTACHMENTS
8
2
6
4
10
5
7
1
3
11
1
9

Артикул

Название

Примечание

Количество

1

197745A1

ANTENNA

Radio;Includes Flat Washer and Nut Which Are Not Serviced Separately

1шт.

2

198962A1

CABLE

Radio Antenna Ground

1шт.

3

87550942

COURTESY LIGHT

DOME LIGHT Interior, Dome Lamp; 12 V

1шт.

4

87550980

BULB

12V, 10W Bulb

1шт.

5

76067706

REAR VIEW MIRROR

Interior

1шт.

6

87444309

BRACKET

Mirror Support Bracket

1шт.

7

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

892-11008

LOCK WASHER,8mm ID

2шт.

10

87517929

BRACKET

Radio Mount

1шт.

11

1535219C1

COVER

Radio Opening

1шт.

Выбрано товаров: 11
