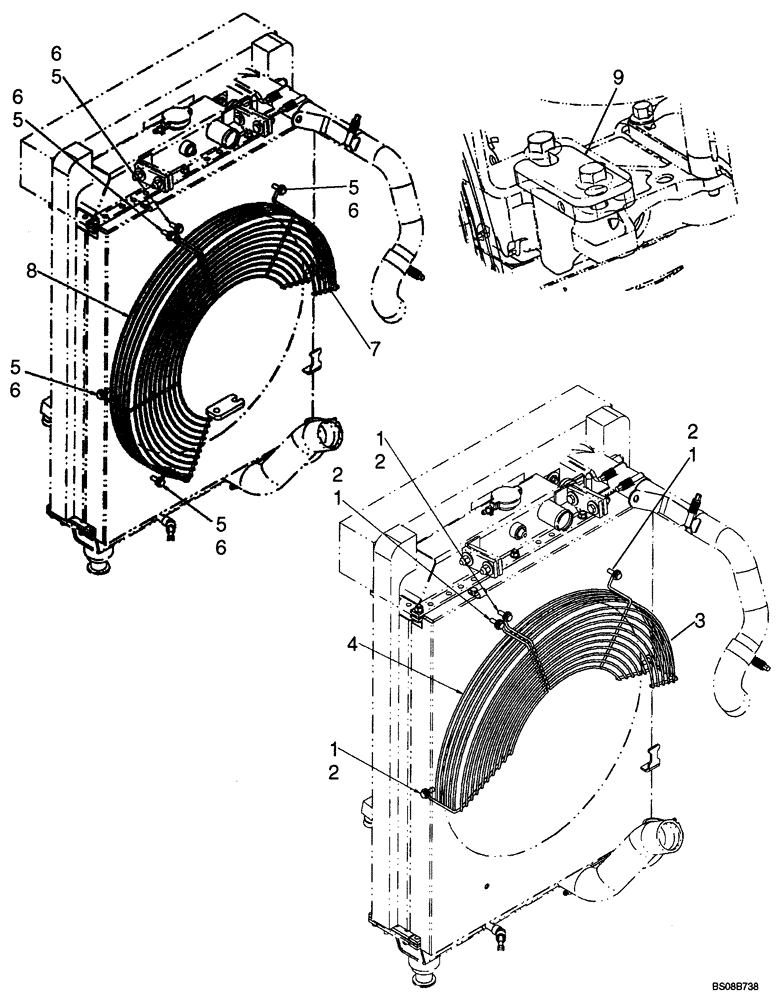

INSTRUCTION
FOR UNITS WITH AIR CONDITIONING
1шт.
1
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
5шт.
2
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
5шт.
3
87482884
GUARD
GUARD, FAN - RH; Replaces 87731514
1шт.
4
87757546
GUARD
GUARD, FAN - LH; Replaces 87731515
1шт.
INSTRUCTION
FOR UNITS WITHOUT AIR CONDITIONING
1шт.
5
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
6шт.
6
895-15008
WASHER,9mm ID x 20mm OD x 1.6mm Thk
6шт.
7
87482884
GUARD
GUARD, FAN - RH; Replaces 87731514
1шт.
8
87497505
GUARD
GUARD, FAN - LH; Replaces 87731513
1шт.
9
87731516
PLATE, Non AC Spacer; No Longer Used
1шт.
