Запчасти Case 850L (09-29) - CAB - COVERS, INTERIOR POSTS (09) - CHASSIS/ATTACHMENTS

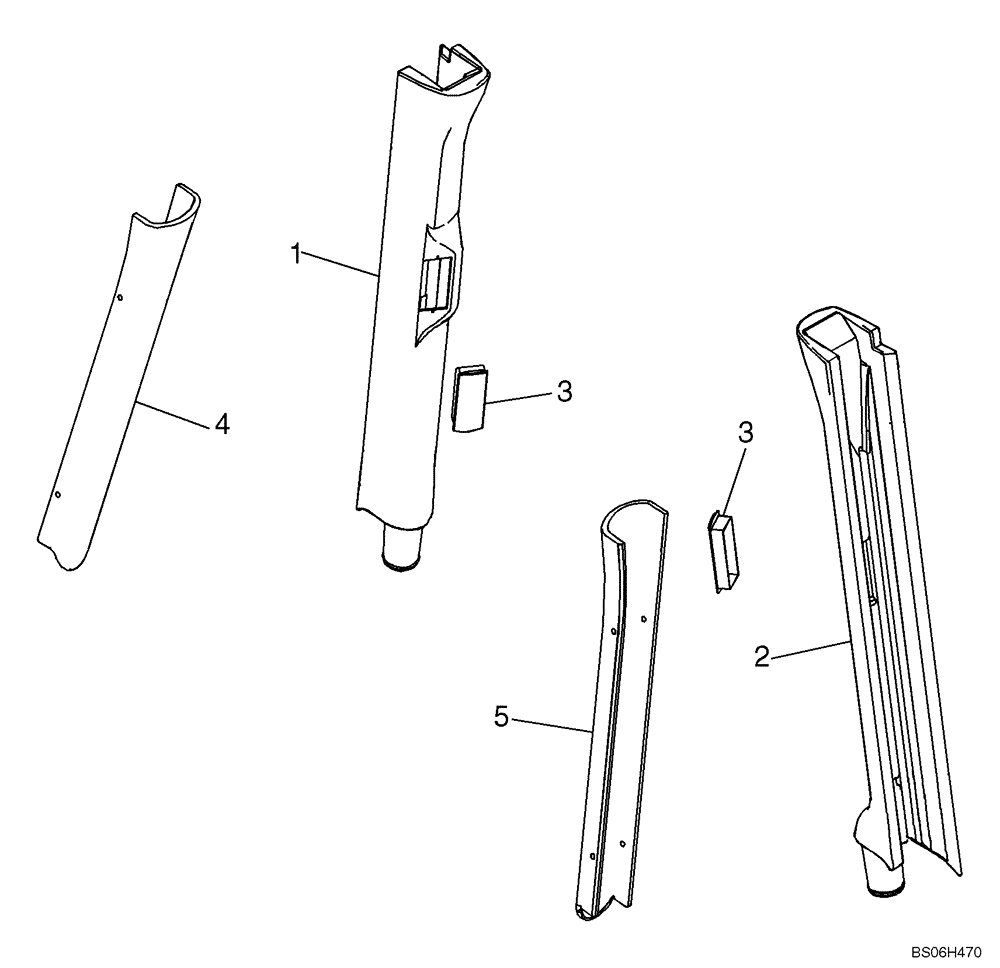

Схема запчастей Case 850L - (09-29) - CAB - COVERS, INTERIOR POSTS (09) - CHASSIS/ATTACHMENTS
5
2
3
4
1
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INFORMATION AND DRAWINGS NOT AVAILABLE AT TIME OF PRINTING

1шт.

1

87517934

COVER

Left-Hand B Post, Front

1шт.

2

87517935

COVER

Right-Hand B Post, Front

1шт.

3

76079036

VENT

Louvers

2шт.

4

87517874

COVER

Left-Hand C Post Cover, Rear

1шт.

5

87517873

COVER

Right-Hand C Post Cover, Rear

1шт.

Выбрано товаров: 6
