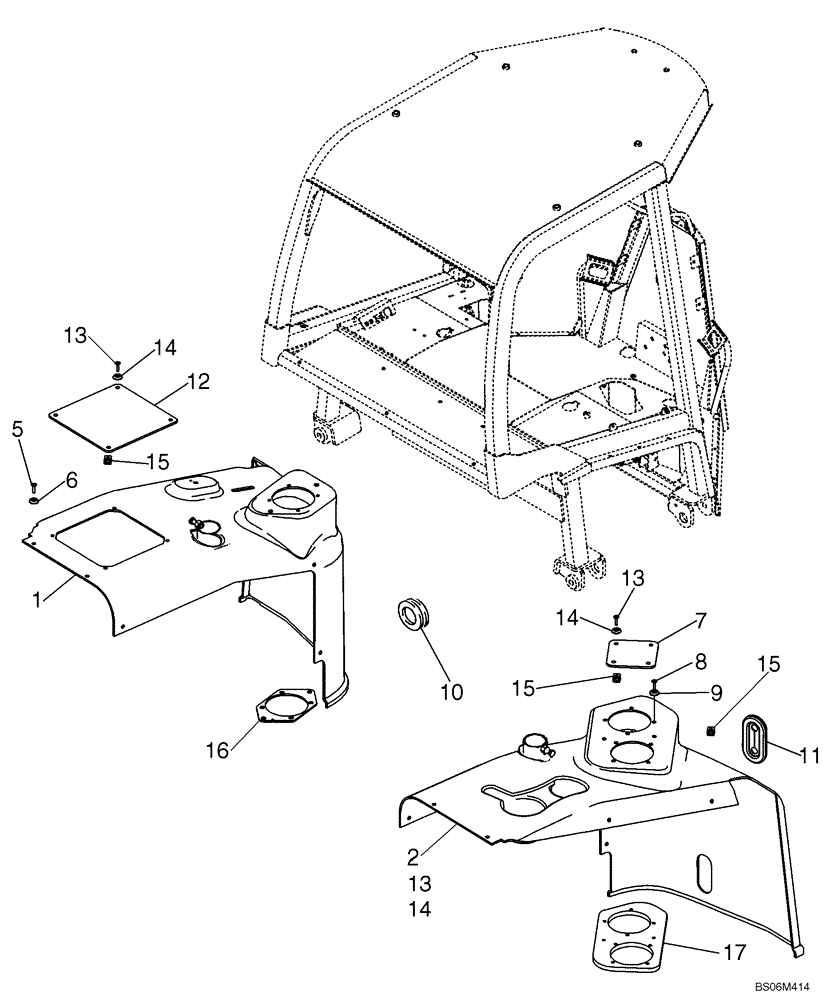

Запчасти Case 850L (09-21) - CANOPY, ROPS - CONSOLES, SIDE (09) - CHASSIS/ATTACHMENTS

1

87380403

CONSOLE

Left-Hand Side

1шт.

2

87541454

CONSOLE

Right-Hand Side

1шт.

5

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

M6 X 20

20шт.

6

79076208

WASHER

Nylon

20шт.

7

87541456

PROTECTIVE COVER

Auxillary Control

1шт.

8

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

9

892-11006

LOCK WASHER,M6

6шт.

10

248-1370

GROMMET

GROMMET

1шт.

11

76067249

SHIELD

Lockout Lever

2шт.

12

87380405

COVER PLATE

Diagnostic

1шт.

13

87341593

SCREW,Oval Hd, Csk, M6 x 20mm, Cl 4.8

Oval Head; M6 X 20

14шт.

14

79076208

WASHER

Nylon

12шт.

15

76047274

NUT,M6 x 1

12шт.

16

87358579

PLATE, SUPPORT

Joystick; Mount From Under Console

1шт.

17

87386604

RETAINING PLATE

Bottom Adapter Plate

1шт.
