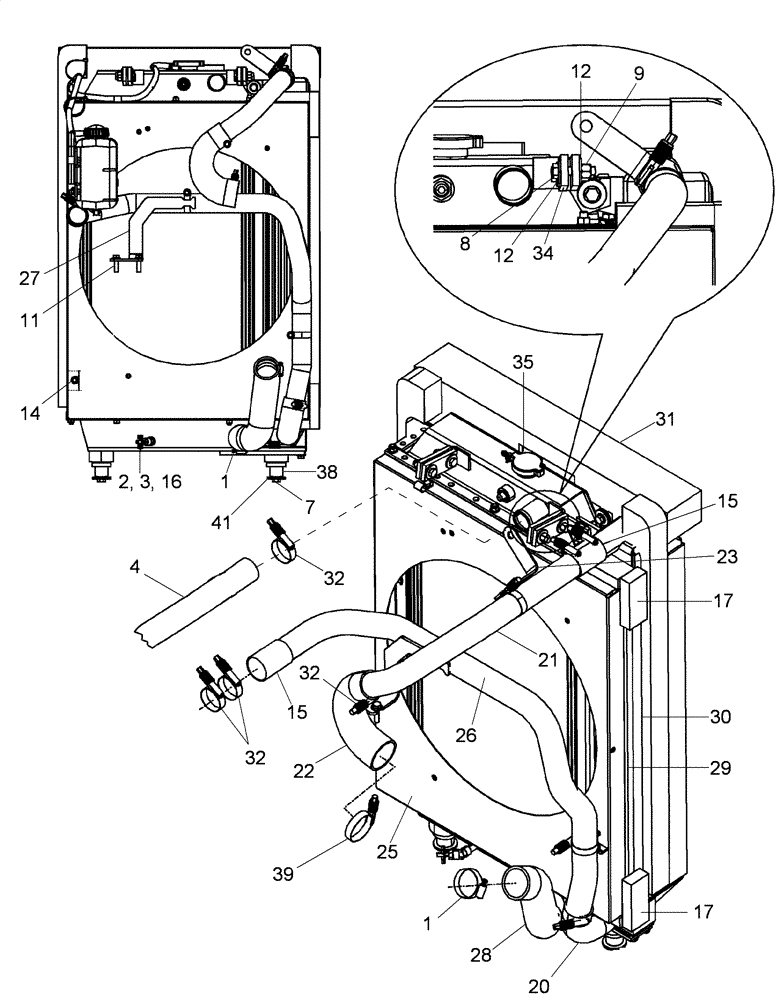

Запчасти Case 850L (02-03) - RADIATOR - MOUNTING (02) - ENGINE

1

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

2шт.

2

217-92

COCK

Fuel Tank

1шт.

3

221-1137

PIPE,Nipple, 1/4" NPT x 2"

1шт.

4

87611665

HOSE

Upper Radiator

1шт.

5

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

Not Illustrated; If Used

4шт.

5

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

If Used

4шт.

7

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

12

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

8шт.

14

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

If Used

4шт.

14

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

If Used

4шт.

15

86982960

A/C HOSE,50.80 mm ID x 75.00 mm

2шт.

16

87025801

ELBOW

45 Degree

1шт.

17

87353987

FOAM INSULATION

Lower Radiator Foam; If Used

4шт.

20

87649522

HOSE,50.80 mm ID x 495.00 mm

Charge Air Cooler; At Base of CAC Exit

1шт.

21

87651827

TUBE,47.5 mm ID x 50.8 mm OD

CAC Inlet

1шт.

22

87651828

HOSE,50.80 mm ID, 63.50 mm ID x 1920.00 mm

Charge Air Cooler

1шт.

23

87701880

BRACKET

CAC Tube Inlet Mounting

1шт.

24

87741902

RADIATOR

Cooling Assembly; Replaces 87731426

1шт.

25

87731495

SHROUD

Engine Fan

1шт.

26

87731501

TUBE,2" OD

CAC Exit

1шт.

27

87731503

BRACKET

CAC Tube Exit Mounting

1шт.

28

87731507

RADIATOR HOSE,57.60 mm ID x 283.90 mm, SAE 20R4 Class C Or D1

Lower

1шт.

29

87731510

SPACER, Shroud; If Used

1шт.

30

87731511

SEAL

SEAL, Side Radiator Foam

2шт.

31

87731512

SEAL

SEAL, Upper Radiator Foam

1шт.

32

254026A1

HOSE CLAMP,44.45mm - 66.67mm

12шт.

34

435979A1

STRAP

4шт.

35

A170241

RADIATOR CAP

1шт.

38

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

2шт.

39

L115548

CLAMP,57.15mm - 79.38mm

1шт.

41

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

4шт.
