Запчасти Case 850L (09-15) - SEAT ASSY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

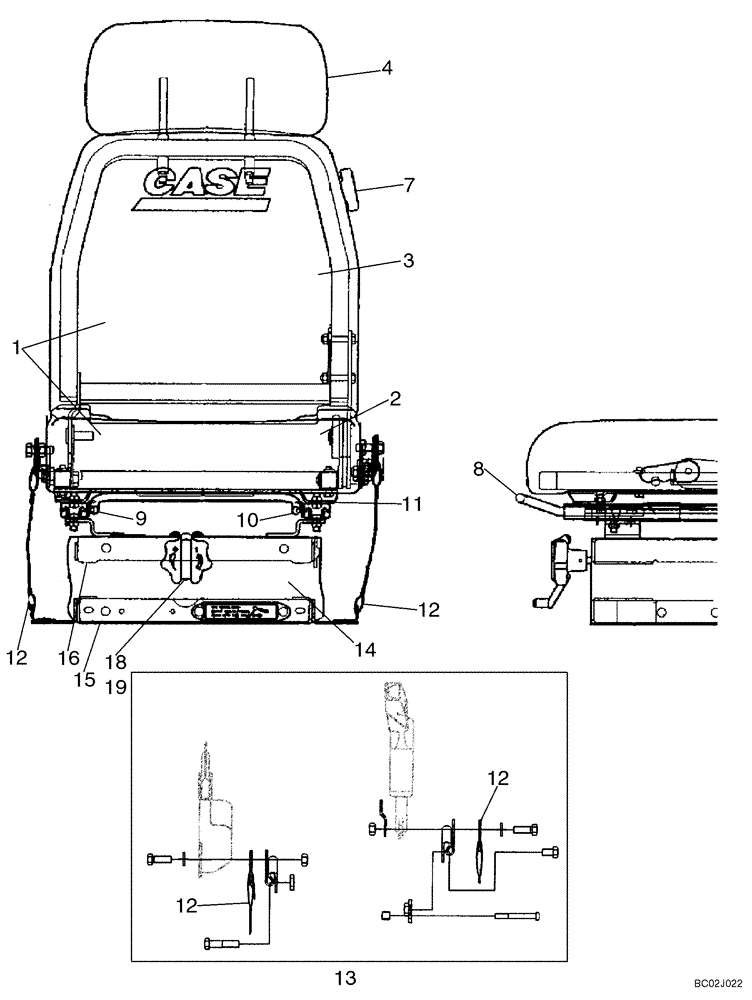

Схема запчастей Case 850L - (09-15) - SEAT ASSY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS
16
19
4
14
15
8
12
3
18
12
2
12
7
10
13
12
1
9
11

Артикул

Название

Примечание

Количество

429468A2

SEAT ASSY.

Mechanical Suspension; Vinyl; Incl. Ref 1 - 19, Except Where Cloth Is Noted

1шт.

87451469

SEAT ASSY.

Mechanical Suspension; Clothl; Incl. Ref 1 - 19, Except Where Vinyl Is Noted

1шт.

1

86990104

SEAT ACCESSORY

Seat; Vinyl; Includes Seat and Backrest Cushion

1шт.

1

86990124

SEAT ACCESSORY

Seat; Cloth; Includes Seat and Backrest Cushion

1шт.

2

86990105

SEAT ACCESSORY

Cushion, Seat; Vinyl

1шт.

2

86990125

SEAT ACCESSORY

Cushion, Seat; Cloth

1шт.

3

86990106

SEAT ACCESSORY

Backrest Cushion; Vinyl

1шт.

3

86990126

SEAT ACCESSORY

Backrest Cushion; Cloth

1шт.

4

86990107

SEAT ACCESSORY

Backrest, Upper; Vinyl

1шт.

4

86990127

SEAT ACCESSORY

Backrest, Upper; Cloth

1шт.

176091A1

PACKAGE,SERVICE

Kit, Hog Ring; Cushion Retainer; Package Of 50

1шт.

87405470

SEAT ACCESSORY

Cover, Back; Vinyl; Includes Manual Holder; Incl. Ref 5

1шт.

1981820C2

PACKAGE, REPAIR

Cover, Back; Cloth; Includes Manual Holder; Incl. Ref 5

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Back; Includes Manual Holder

1шт.

7

1987212C1

PACKAGE

BackTilt Knob; Includes Knob, Handle, Screw

1шт.

8

86990108

SEAT ACCESSORY

Lever, Slide Release

1шт.

9

86990111

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

10

86990112

SEAT ACCESSORY

Slide; 6 in. Travel

1шт.

1977725C1

SLIDER

Kit, Slider Block; Includes (4) Slider Blocks, (4) Bearings, (1) Ride Indicator

1шт.

11

182991A1

LARGE PLATE

PLATE, LARGE Adapter

1шт.

12

86990113

BELT

Tether

2шт.

13

389085A1

KIT

Seat Belt Mounting; Includes (2) Brackets, (3) Spacers, (1) Plate, (6) Bolts, (2) Nuts

1шт.

14

86990114

SEAT ACCESSORY

Suspension Assembly; Boxed

1шт.

389284A1

KIT

Spring; Suspension

1шт.

51200906

BRACKET

Shaft; Suspension

1шт.

112884A1

SHAFT,368mm L

Bearing

1шт.

86990117

SEAT ACCESSORY

Arm, Suspension

1шт.

A45504

SPRING WASHER

Spring Washer; Square, With Weldnut

1шт.

A45505

GEAR

Gear and Shaft

1шт.

A45054

BUMPER,Neoprene

Black Rubber

2шт.

15

389273A1

HOUSING

Lower; Boxed

1шт.

16

86990116

SEAT ACCESSORY

Housing; Upper; Boxed

1шт.

389276A1

KIT

Shock Absorber; Includes (1) Shock, (2) Bearings

2шт.

64918C1

SHOCK ABSORBER

Kit, Shock Absorber; Includes (1) Shock, (2) Bearings, (1) Bolt, (1) 231-4206 Nut, (1) 131-1100 Nut, (2) Spacers

1шт.

17

389086A1

KIT

Boot; Includes (1) Boot, (25) Clips, (1) Decal

1шт.

130674A1

SET

Kit, Weight Adjustment; Includes (1) Thrust Washer, (2) Shaft and Gear

1шт.

18

123969A1

SEAT ACCESSORY

Kit, Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) Roll Pin

1шт.

19

38-31016

PIN,5/32" x 1", Coiled

1шт.

Выбрано товаров: 38
