Запчасти Case 850L (09-14) - SEAT ASSY, MECHANICAL SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS

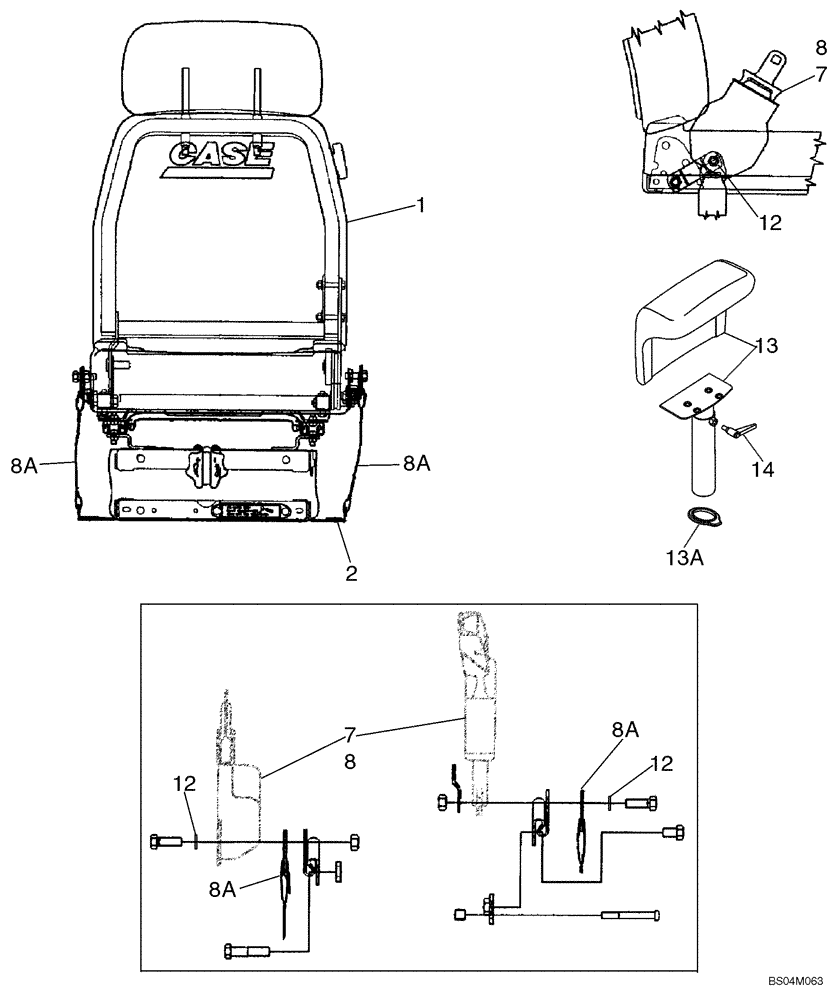

Схема запчастей Case 850L - (09-14) - SEAT ASSY, MECHANICAL SUSPENSION - MOUNTING (09) - CHASSIS/ATTACHMENTS
13
13a
12
8
1
12
14
2
8a
8a
8
7
12
8a
8a
7

Артикул

Название

Примечание

Количество

1

429468A2

SEAT ASSY.

Mechanical Suspension; Vinyl; See Figure 09-15

1шт.

1

87451469

SEAT ASSY.

Mechanical Suspension; Cloth; See Figure 09-15

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Replaces 854-10025 M10 x 25, 10.9 Bolt Used On Some Models

4шт.

7

87408888

SAFETY BELT ,76.20 mm W

Mounting Hardware Supplied with Seat Assy

1шт.

8

87408889

SAFETY BELT ,50.80 mm W

Armrest

1шт.

8a

NSS

NOT SOLD SEPARAT

Tether; Included With Ref 7, 8

1шт.

D150393

BRACKET

Not Illustrated

1шт.

12

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

13

86989674

ARMREST ASSY.

Incl. (1) 87410160 Pad, (1) 86988140 Tube Support, (4) 895-15008 Washer, (4) 832-10408 Nut

2шт.

87410160

ARMREST

1шт.

86988140

SUPPORT TUBE

1шт.

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13a

76067464

SEAL

Armrest Tube

2шт.

14

87446967

HANDLE

Armrest, Plastic Handle

2шт.

Выбрано товаров: 15
