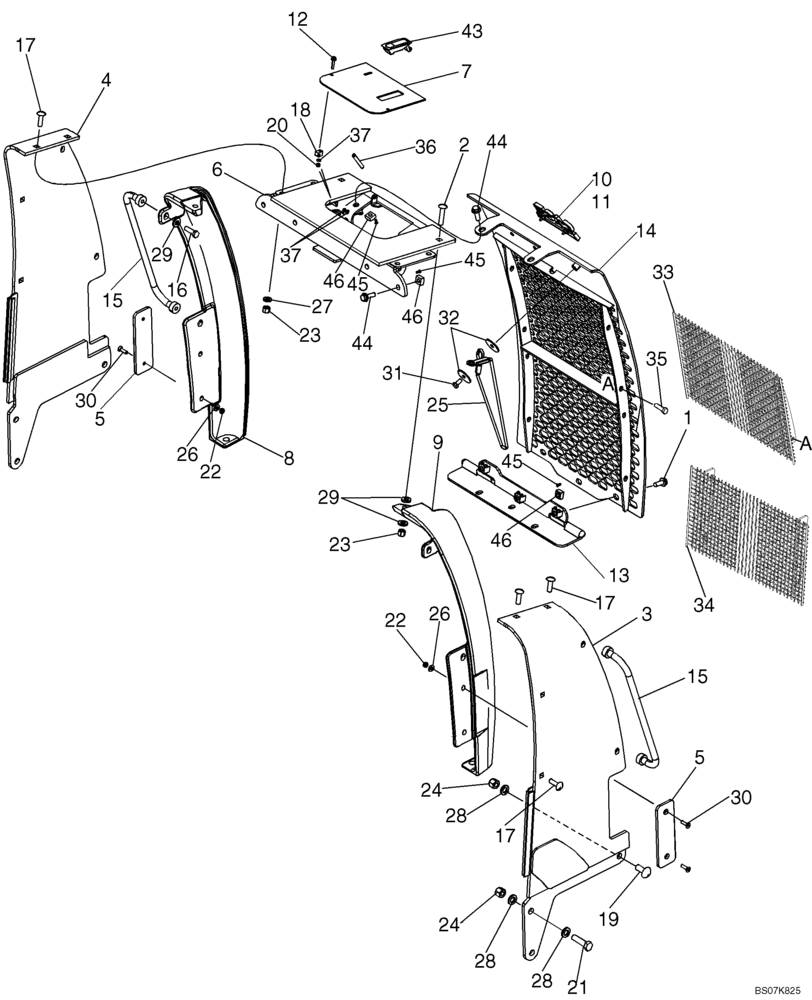

Запчасти Case 850L (09-13) - GUARD, RADIATOR BRUSH SCREEN - GRILLE, HOOD (09) - CHASSIS/ATTACHMENTS

1

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

3шт.

2

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

3

87730314

PLATE

COVER, Right-Hand

1шт.

4

87730329

PLATE

COVER, Left-Hand

1шт.

5

87446366

WEAR PAD

2шт.

6

87470117

PLATE

COVER, Top; Replaces 87728910

1шт.

7

87470129

RADIATOR PANEL

Radiator; Replaces 87618610

2шт.

8

87729521

GRILLE

FRAME, Left-Hand

1шт.

9

87758774

GRILLE

FRAME, Right-Hand; Replaces 87729529

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

11

186989A1

EMBLEM

Case Logo

1шт.

12

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

13

87491050

HINGE

HINGE

1шт.

14

87600273

GRILLE

Radiator

1шт.

15

450443A1

HANDLE

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

If Used

4шт.

16

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

If Used

4шт.

17

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

4шт.

18

87440322

HINGE

BLOCK HINGE

1шт.

19

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

2шт.

20

832-10406

NUT,M6 x 1, Cl 8

2шт.

21

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

If Used

4шт.

21

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

If Used

4шт.

22

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

24

832-10416

NUT,M16 x 2, Cl 8

6шт.

25

87419297

CABLE

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

28

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

30

14442231

SCREW,Flat Csk Hd, M8 x 1.25 x 30mm, Cl 10.9

SCREW

4шт.

31

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

32

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

2шт.

33

87600309

SCREEN

Radiator Brush; Upper

1шт.

34

87600308

SCREEN

Radiator Brush; Lower

1шт.

35

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

If Used

8шт.

36

87618615

SPRING

Radiator Access Door Extension; Used In Some Models

1шт.

37

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

43

356924A3

LATCH

Hood

1шт.

44

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

Use with Loctite 242

6шт.

45

336371A1

PIN,4.88mm OD x 14.23mm L

1шт.

46

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

1шт.
