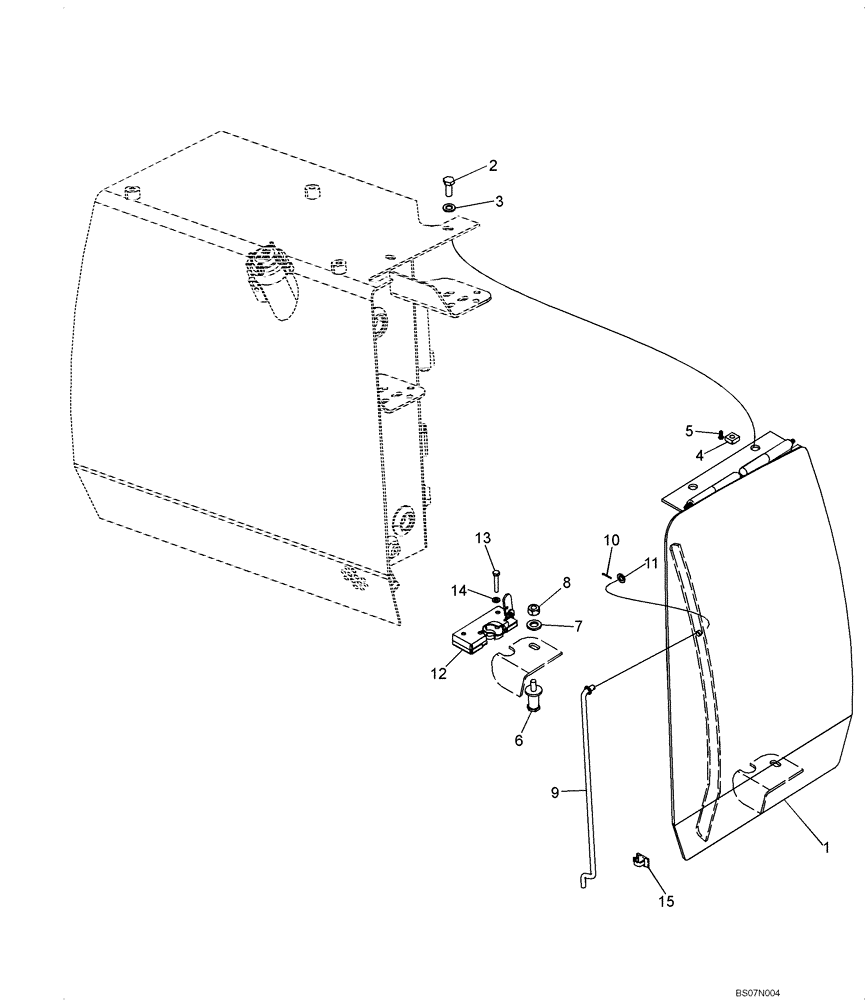

Запчасти Case 850L (09-10) - DOOR, REAR - TANK, HYDRAULIC OIL (09) - CHASSIS/ATTACHMENTS

1

413927A2

DOOR ASSY.

Right-Hand, Rear; Hydraulic Tank

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

122958A1

SQUARE NUT

M10

2шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

6

328534A1

BOLT

Striker

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

425-107

NUT,7/16"-14, G5

1шт.

9

87648263

ROD ASSY.

Hold Open

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

R55003

LATCH ASSY.

1шт.

13

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

Used with (2) 825-2406 M6 Flange Nuts

2шт.

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

14

492-11025

LOCK WASHER,1/4"

2шт.

15

L100659

CLIP

Harness

1шт.
