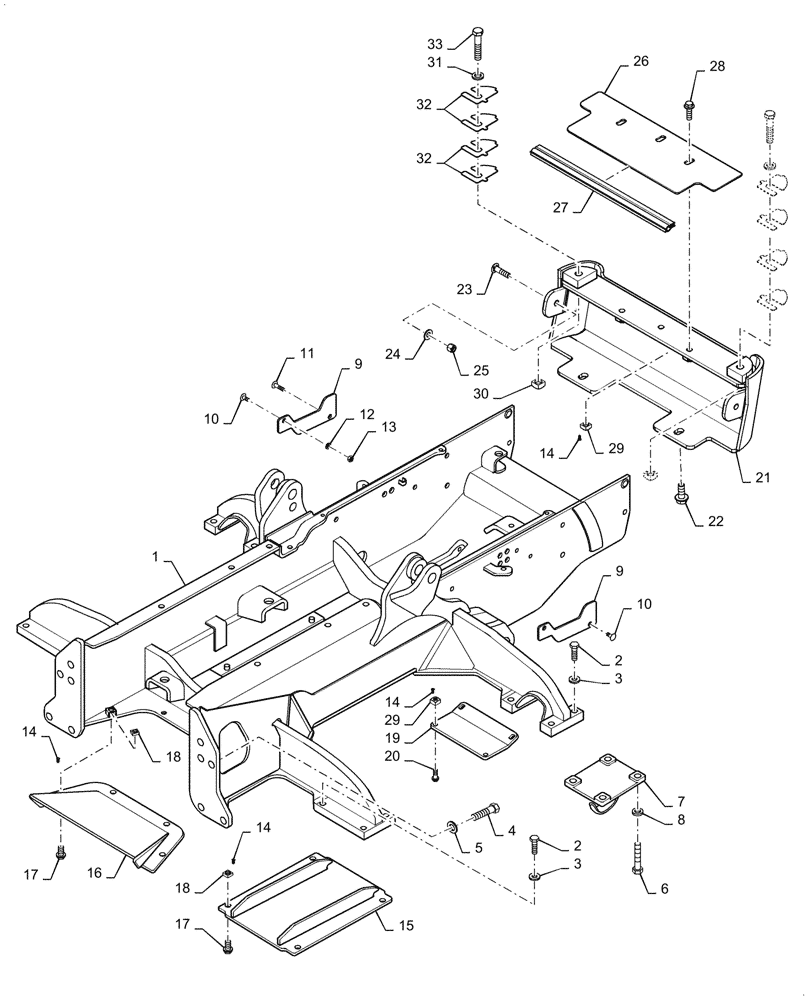

Запчасти Case 850L (09-08) - FRAME, MAIN - COVERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87598813
FRAME
FRAME ASSY., Chassis; Lower; 1448 mm (57 inch) Gauge Long Track (LT) Models
1шт.
1a
87598814
FRAME
FRAME ASSY., Chassis; Lower; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; Not Illustrated
1шт.
2
410-91240
BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8
16шт.
3
496-41081
WASHER,13/16" x 1 3/4" x .219", HDN
16шт.
4
410-91640
BOLT,Hex, 1" - 8 x 2 1/2", Gr 8
10шт.
5
496-31106
WASHER,1 1/16" x 2" x .219", HDN
10шт.
6
627-20060
BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd
Used with Ref 7
4шт.
7
450473A1
HOOK
Towing
1шт.
9
436724A1
FIXING PLATE
2шт.
10
711-10030
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
3шт.
11
811-10035
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8
1шт.
13
832-10410
NUT,M10 x 1.5, Cl 8
4шт.
14
336371A1
PIN,4.88mm OD x 14.23mm L
Nut Retainer
17шт.
15
87435887
PAN ASSY.
Center
1шт.
16
87435884
PAN
Rear
1шт.
17
857-16040
BOLT,Hvy Hex, M16 x 40mm, Cl 10.9
8шт.
18
405737A2
SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A
10шт.
19
87452741
PAN ASSY.
Front
1шт.
21
87617114
PLATE
Front Bumper
1шт.
22
854-16040
BOLT,Hvy Hex, M16 x 40mm, Cl 10.9
2шт.
23
811-12050
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8
2шт.
24
895-15012
WASHER,M12 x 28 x 2.5
2шт.
25
832-10412
NUT,M12 x 1.75, Cl 8
2шт.
26
87733785
PLATE
Lower Radiator; Used With Front Bumper
1шт.
27
87731498
SEAL
RUBBER
1шт.
28
854-12040
BOLT,Hvy Hex, M12 x 40mm, Cl 10.9
3шт.
29
87447306
SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A
7шт.
30
405737A2
SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A
2шт.
31
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
2шт.
32
87618605
SHIM
Wrapper Mount
8шт.
33
86577946
BOLT,Hex, M16 x 80mm x 10.9
2шт.
Выбрано товаров: 34
