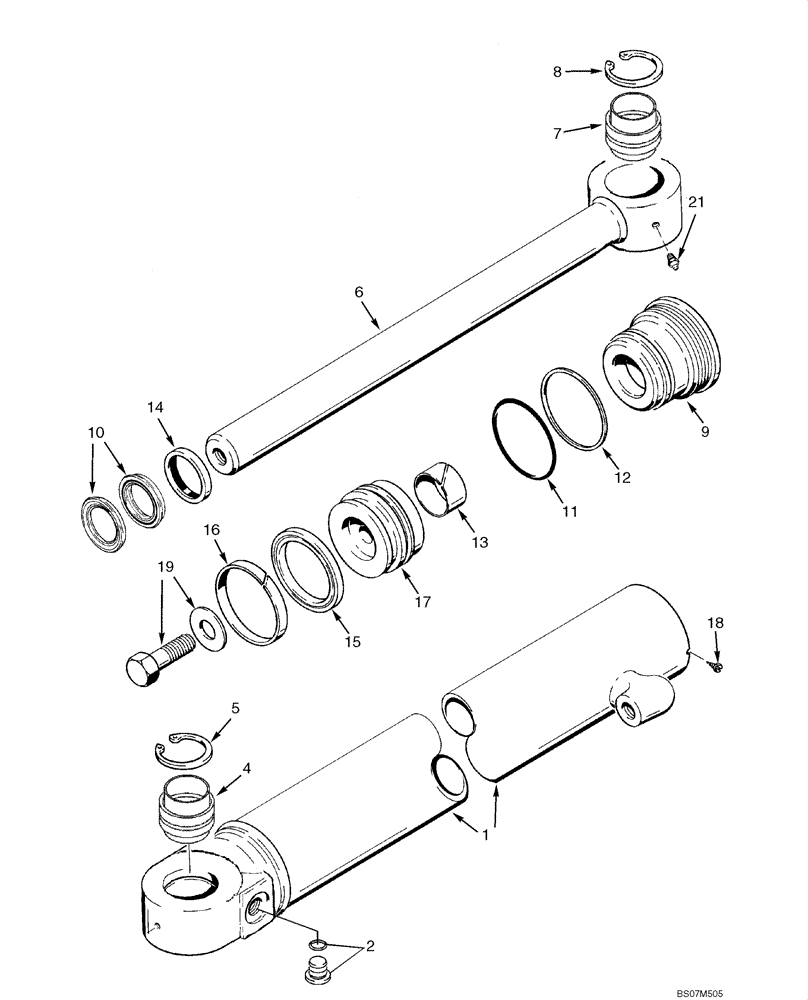

Запчасти Case 850L (08-13) - CYLINDER ASSY - ANGLE BSN N9DC80008 (08) - HYDRAULICS

87615546

CYLINDER ASSY.

89 ID x 396 mm Stroke; Angle; Incl. Ref 1 - 21; No Longer Available Order 87615546, See Figure 08-13A

2шт.

1

87610732

TUBE,88.67mm Bore Dia

1шт.

2

86625121

PLUG,Sltd Hd, 7/8"-14, Incl NSS O-Ring

Includes O-Ring; Replaces 353-780

2шт.

4

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

6

430296A1

PISTON ROD

45 mm (1-3/4 inch) dia

1шт.

7

407539A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 62.5mm W

1шт.

8

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

9

87610735

GLAND

Gland

1шт.

250741A1

SEAL KIT

Incl. Ref 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Seal; Order 250741A1

1шт.

11

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

13

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

14

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

15

190332A1

SEAL,74.5mm ID x 88.77mm OD x 7.16mm Thk

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

17

1986982C1

PISTON

1шт.

18

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
