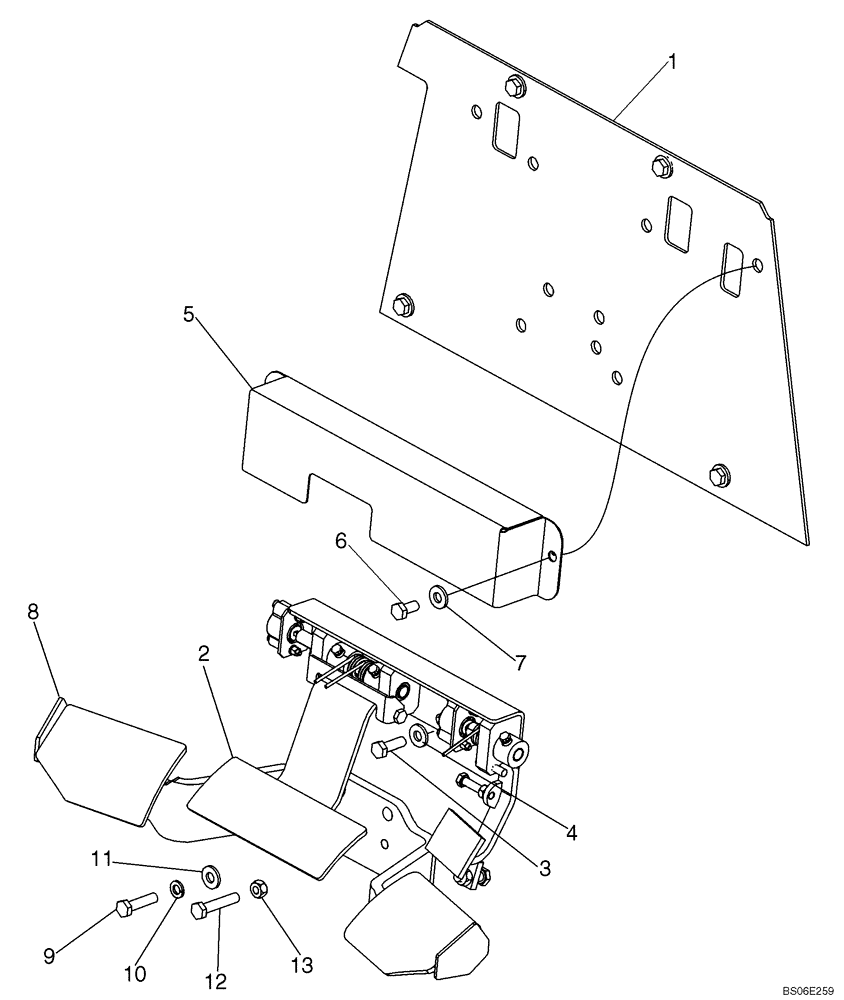

Запчасти Case 850L (07-01) - BRAKE PEDAL AND FOOTREST MOUNTING (07) - BRAKES

1

87378232

PLATE

Firewall Plate; Canopy Models

1шт.

1

87568861

PLATE

Firewall Plate; Cab Models; Not Illustrated

1шт.

2

87378238

Brake and Decelerator Pedal Assembly; Not Available As An Assembly, Order Components, See Figure 07-02

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

87395690

PLATE

Brake and Decelerator Pedal Cover

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

8

76046804

FOOTREST

1шт.

9

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

12

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

Adjust for Brake Potentiometer Voltage

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
