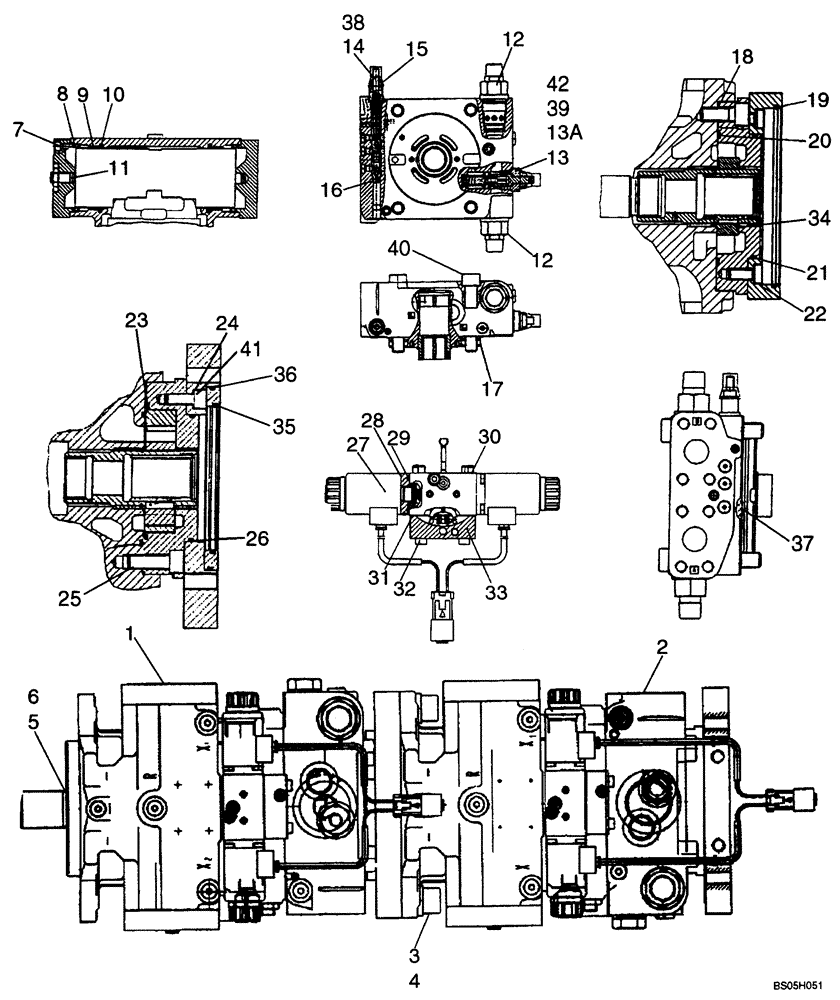

Запчасти Case 850L (06-13) - PUMP ASSY - HYDROSTATIC (06) - POWER TRAIN

401630A2

HYDROSTATIC PUMP

Incl. 1 - 41

1шт.

84417898R

REMAN-HYDROSTAT PUMP

850L CRAWLER DOZER TIER 3 (1/08-), Reman for New PN 401630A2

1шт.

84417898C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump, Shaft End

1шт.

2

NSS

NOT SOLD SEPARAT

Pump, Rear

1шт.

3

864-16035

HEX SOC SCREW,M16 x 35mm, Cl 8.8

2шт.

4

87441429

WASHER

2шт.

5

87441419

SEAL

Shaft, Front and Rear Pumps

2шт.

6

87441406

RING

Front and Rear Pumps

4шт.

7

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Front and Rear Pumps

16шт.

8

238-5148

O-RING,0.103" Thk x 2.737" ID, -148, Cl 5, 75 Duro

4шт.

9

87441417

RING

Guide; Front and Rear Pumps

4шт.

10

87441416

RING

Special; Front and Rear Pumps

4шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Positioning Piston Rod; Front and Rear Pumps

2шт.

12

87441421

VALVE, PRESSURE RELI

EF Relief; To Service External Seals, Order 87441415 Seal Kit; Front and Rear Pumps

4шт.

87441415

SEAL KIT

Seal Kit, Charge Relief Seal, Not Illustrated

1шт.

13

87441430

VALVE PRESSURE RELIE

Pressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441428 Seal Lock Nut; Front Shaft End Pump

1шт.

13a

87441405

VALVE PRESSURE RELIE

Pressure Relief; Component Parts Not Serviced Separately; Includes (1) 87441404 Locking Screw; Rear Pump

1шт.

14

87441431

VALVE PRESSURE RELIE

Pressure Overide; Incl. Ref 15, 16; Front and Rear Pumps

1шт.

15

87441427

LOCK NUT

Seal

1шт.

16

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

17

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

Front and Rear Pumps

1шт.

18

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

Front Pump Support Plate

4шт.

19

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

Front Pump Support Plate

1шт.

20

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

Charge Pump Wear Plate

1шт.

21

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

22

87441426

RING

Seal; Front Pump Support Plate

8шт.

23

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

Rear Pump Wear Plate

1шт.

24

87441426

RING

Seal; Rear Pump Support Plate

8шт.

25

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

Rear Pump Support Plate

8шт.

26

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

87316133

MODULE

Control; Tandem Pump; Incl. 28 - 33

2шт.

27

87441418

SOLENOID VALVE

Proportional Solenoid, Control Module; Front and Rear Pumps

2шт.

28

87441402

BASE

Solenoid Mounting; Front and Rear Pumps

2шт.

29

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

2шт.

30

87444198

GASKET

Solenoid Base; Front and Rear Pumps

1шт.

31

87441403

GASKET

Cover; Front and Rear Pumps

1шт.

32

87441423

BOLT,Skt Hd, M6 x 65mm, Gr 8.8

Socket Head; Front and Rear Pumps

4шт.

33

87441401

VALVE COVER

Solenoid Control Module; Front and Rear Pumps

1шт.

34

238-5031

O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro

2шт.

35

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

36

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

38

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

39

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

40

863-16090

HEX SOC SCREW,M16 x 90mm, Cl 12.9

4шт.

41

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

8шт.

238-6123

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

1шт.
