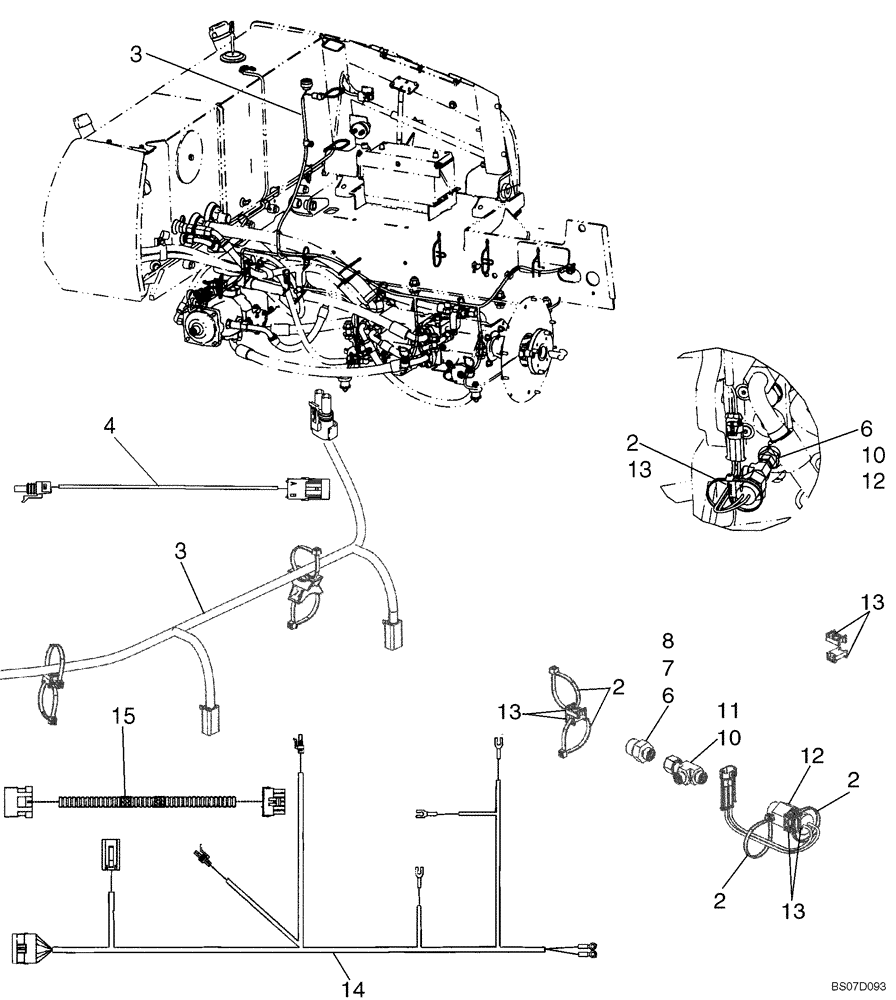

Запчасти Case 850K (04-11) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

3

419302A1

WIRE HARNESS

MicroController To Pump Motor; Along With 87310025 Harness (REF 4) Replaces 87438047 Harness

1шт.

4

87310025

WIRE HARNESS

Jumper Harness; Engine Speed Pickup

1шт.

See Ref 16 for Engine Speed Sensor

1шт.

6

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

1/4 ORFS x 1/2 ORB; Incl. Ref 7, 8

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

10

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

At Tandem Pump; Incl. Ref 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

87403648

PRESSURE SWITCH

Charge; At Tee On Tandem Pump

1шт.

13

86982400

SPACER

1шт.

14

419176A1

WIRE HARNESS

Rear

1шт.

15

87625470

WIRE HARNESS

Resistor Jumper (Series 3); Connects to 419176A1, Ref 14, Rear Wire Harness

1шт.

16

4890189

SENSOR

Engine Speed Sensor

1шт.
