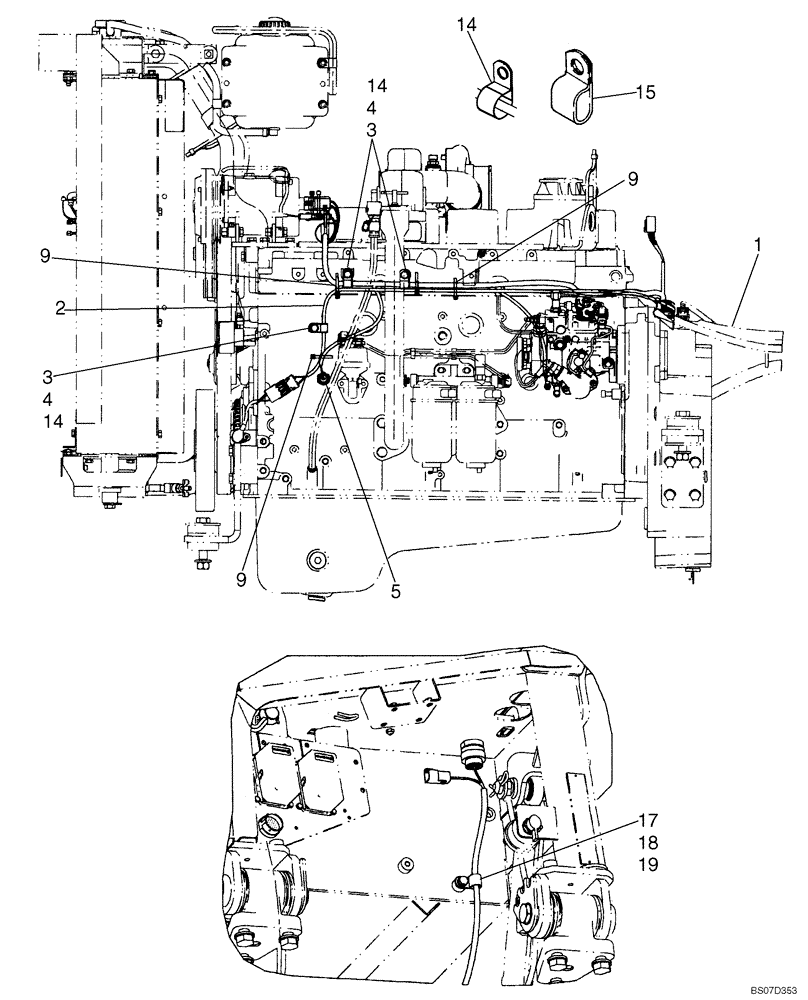

Запчасти Case 850K (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS

1

87589071

WIRE HARNESS

Engine Control

1шт.

2

87310025

WIRE HARNESS

1шт.

3

892-11008

LOCK WASHER,8mm ID

3шт.

4

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

5

277016A1

PRESSURE SWITCH

Engine Oil, Incl. 637-62081 O-ring

1шт.

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

14

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

3шт.

15

242999A1

CLAMP

Double

2шт.

17

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

18

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

19

892-11010

LOCK WASHER,M10

1шт.
