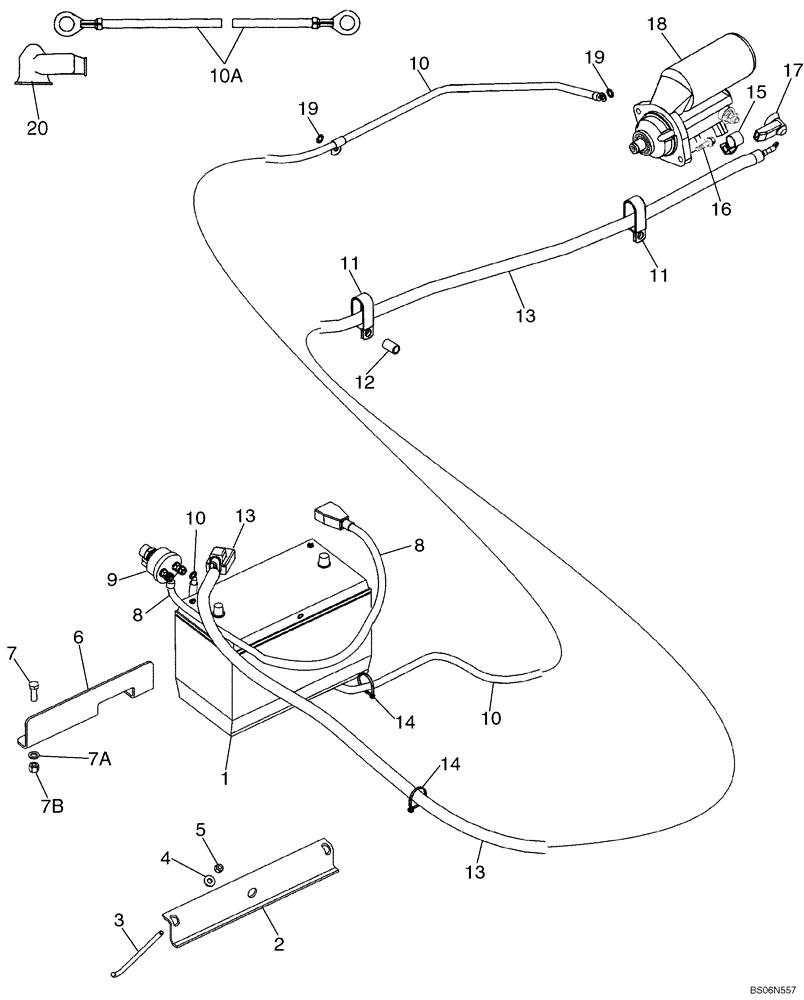

Запчасти Case 850K (04-05) - BATTERY, SINGLE - CABLES (04) - ELECTRICAL SYSTEMS

1

A180406

BATTERY

BMF31EW; Wet; 12V

1шт.

2

86993151

LARGE PLATE

PLATE, LARGE Replaces R51648

1шт.

3

416298A1

ROD

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

417789A1

ANGLE

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7b

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

86982902

NEG BATTERY CABLE

1167 mm (46 in)

1шт.

9

87409316

SWITCH

Master Disconnect; Component Parts Not Serviced Separately; Replaces R52278

1шт.

10

86982704

GROUND CABLE

Negative, 1956 mm (77 in); Engine To Frame; Includes Clamp; If Used

1шт.

10a

87533236

GROUND CABLE

W/ 2 Eyelet Terminals, 345 mm (13.5 In); Engine To Frame; If Used

1шт.

11

242999A1

CLAMP

2шт.

12

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 tube

1шт.

13

432901A1

CABLE ASSY.

Positive, 2660 mm (104-3/4 in)

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

15

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

16

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

2шт.

17

L126713

BOOT

1шт.

18

86992395

STARTER MOTOR,12V, 2.7kW

See Figure 04-01

1шт.

18

86992395R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

18

86992395C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

19

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

20

87620402

BOOT

Black Electrical Boot

2шт.
