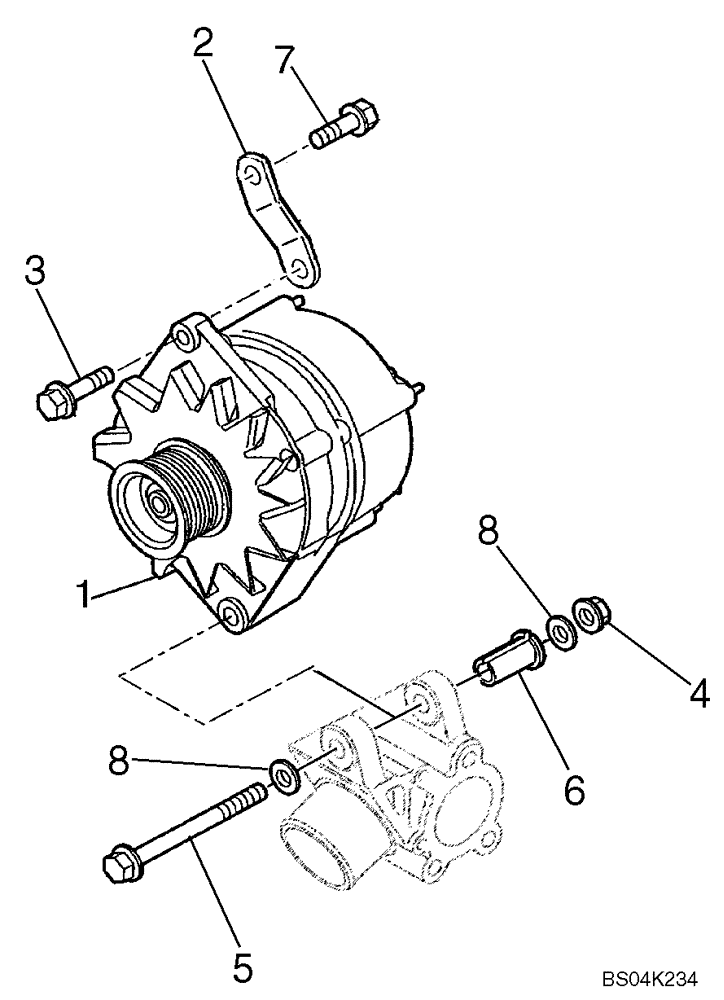

Запчасти Case 850K (04-04) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Alternator Assy; See Figure 04-02, 04-03

1шт.

2

2853215

BRACKET

Mounting Strap

1шт.

3

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

6

87452257

SPACER

1шт.

7

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
