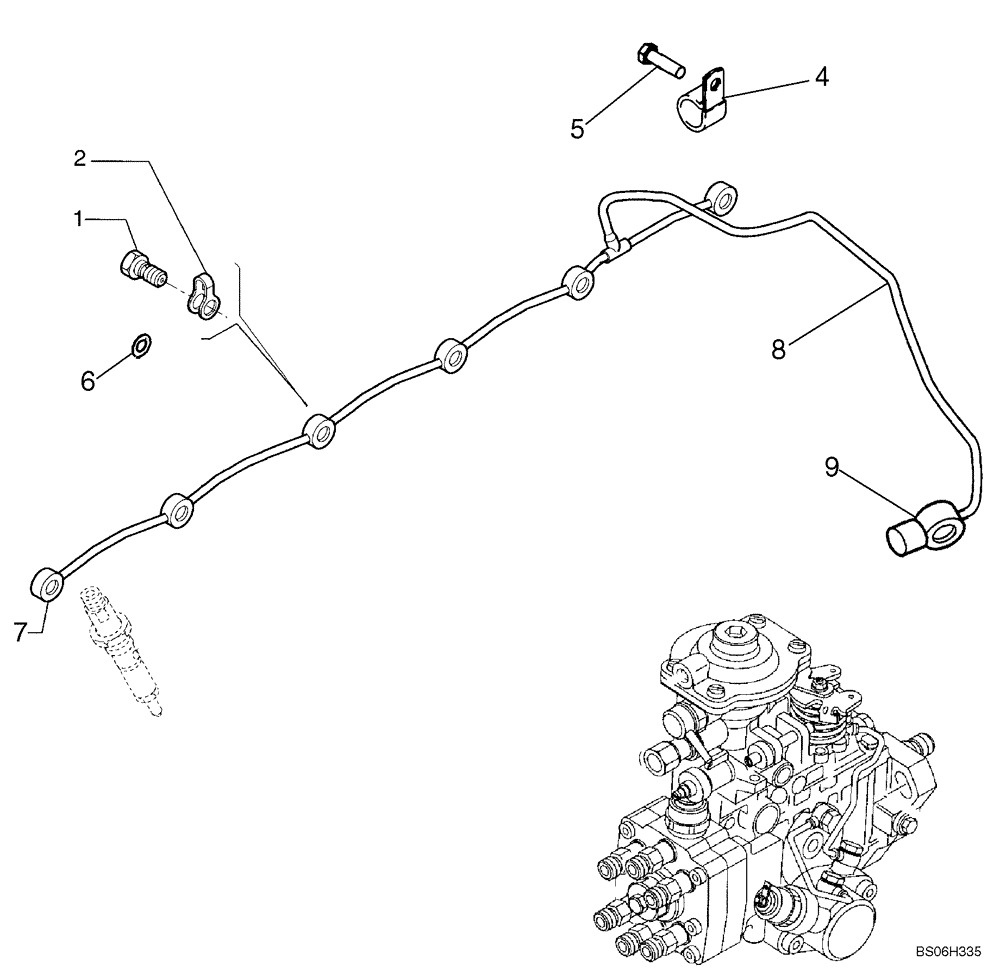

Запчасти Case 850K (03-13) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

8097552

SCREW

6шт.

2

4895305

SEAL

If Used

6шт.

4

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

Replaces 2852819

1шт.

5

2852323

SCREW,M8 x 1.25 x 14mm

1шт.

6

2855903

SEALING WASHER,5.8mm ID x 11mm OD x 1.2mm Thk

If Used

12шт.

2853192

RIGID TUBE,257.4 mm Length

Fuel Drain Tube Assy; Incl. Ref 7-9

1шт.

7

2852368

RETURN PIPE

Fuel Drain Pipe

1шт.

8

NSS

NOT SOLD SEPARAT

Fuel Drain Tube

1шт.

9

NSS

NOT SOLD SEPARAT

Socket Connector Assy

1шт.
