Запчасти Case 850K (02-34) - OIL FILTER AND COOLER (02) - ENGINE

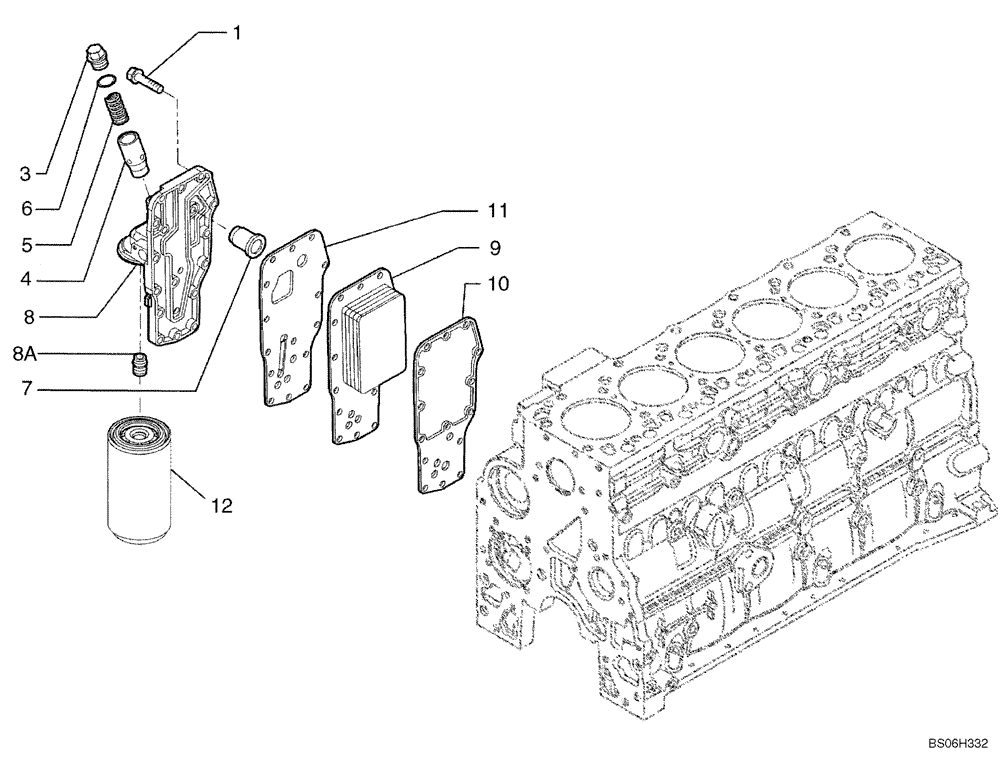

Схема запчастей Case 850K - (02-34) - OIL FILTER AND COOLER (02) - ENGINE
8a
10
5
12
4
9
6
3
1
7
8
11

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2853782

OIL COOLER

Incl. Ref 3 - 8; No Longer Available as Assy.; Order Ref 3- 8

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Regulator

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4899643

FILTER HEAD

Incl. 8A

1шт.

8a

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

4896407

OIL COOLER

Core

1шт.

9

2853604

OIL COOLER

Alternate, Serial Range: Part-4896407

1шт.

10

2830559

GASKET,0.5mm Thk

Core

1шт.

11

4896409

GASKET,1.55mm Thk

Head

1шт.

12

REF

INSTRUCTION

FILTER, ENGINE OIL; See Figure 02-32

1шт.

Выбрано товаров: 14
