Запчасти Case 850K (02-25) - PISTONS - CONNECTING ROD (02) - ENGINE

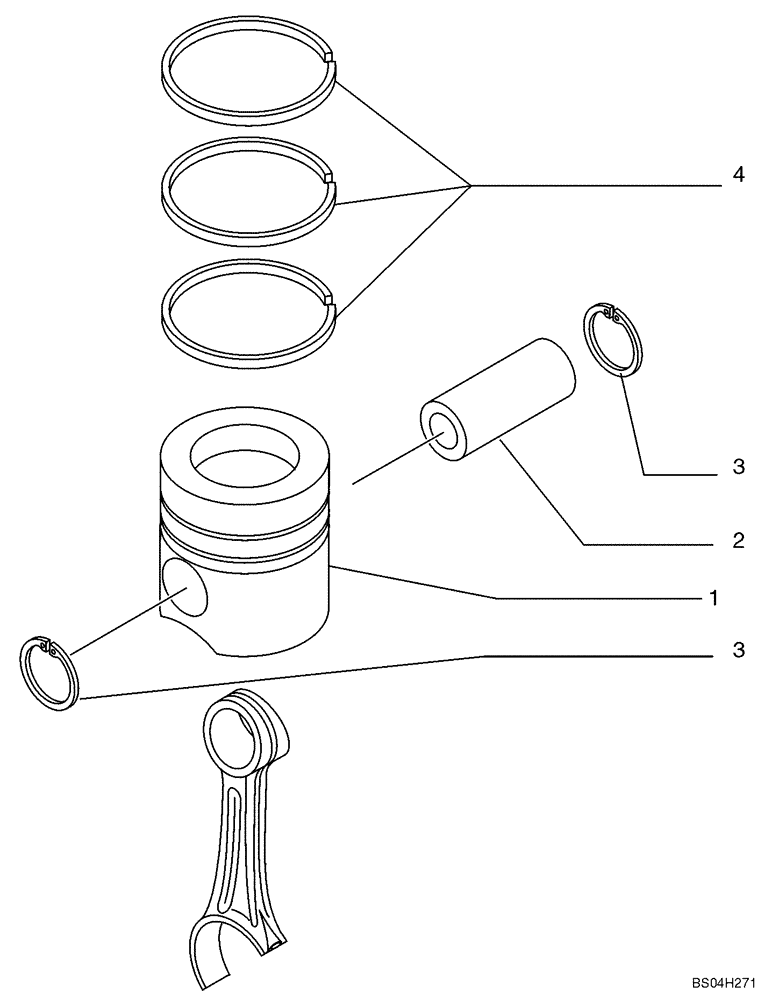

Схема запчастей Case 850K - (02-25) - PISTONS - CONNECTING ROD (02) - ENGINE
4
3
3
1
2

Артикул

Название

Примечание

Количество

1

2855531

PISTON

Assy W/ Barcode; Replaces 4897980 Piston Assy W/O Barcode; Used on some models

6шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

6шт.

3

4892713

SNAP RING,Int, M26.4

12шт.

4

2854603

PISTON RING

RING, PISTON, Replaces 2852036

6шт.

4

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

6шт.

4

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

6шт.

Выбрано товаров: 6
