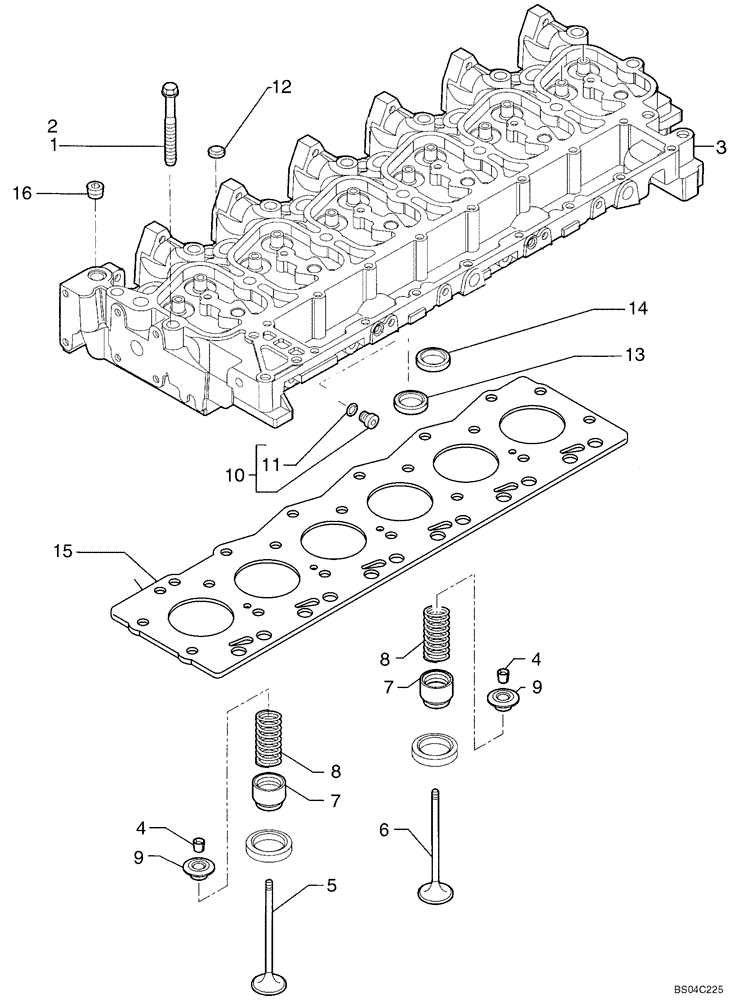

Запчасти Case 850K (02-18) - CYLINDER HEAD (02) - ENGINE

87536204

CYLINDER HEAD

Assy., Includes Ref 3 - 9

1шт.

87536204R

REMAN-CYLINDER HEAD

1шт.

87536204C

CORE-CYLINDER HEAD

Return Number

1шт.

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

6шт.

2

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

3

4895768

CYLINDER HEAD

No Longer Available as Assembly; Order Ref. 3 - 14, Ref 16

1шт.

3

4895765

CYLINDER HEAD

Incl. 12 - 14

1шт.

4

4895183

COLLET

24шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

7

4895347

SEAL

12шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

12шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

10

4899009

PLUG,M10 x1

Incl. Ref 11

1шт.

11

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

12

4895179

EXPANSION PLUG,M20.93

3шт.

13

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

6шт.

14

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

6шт.

15

2830922

CYLINDER HEAD GASKET,1.4mm Thk

1,25 mm;, Serial Range: Alternative-2830923

1шт.

15

2830923

CYLINDER HEAD GASKET,1.15mm Thk

1,15 mm;, Serial Range: Alternative-2830922

1шт.

16

4895078

PIPE PLUG,1/2"-14

5шт.

10

4899009

PLUG,M10 x1

Incl. Ref 11

1шт.

2856677

PLUG

PLUG; Not Illustrated

5шт.
