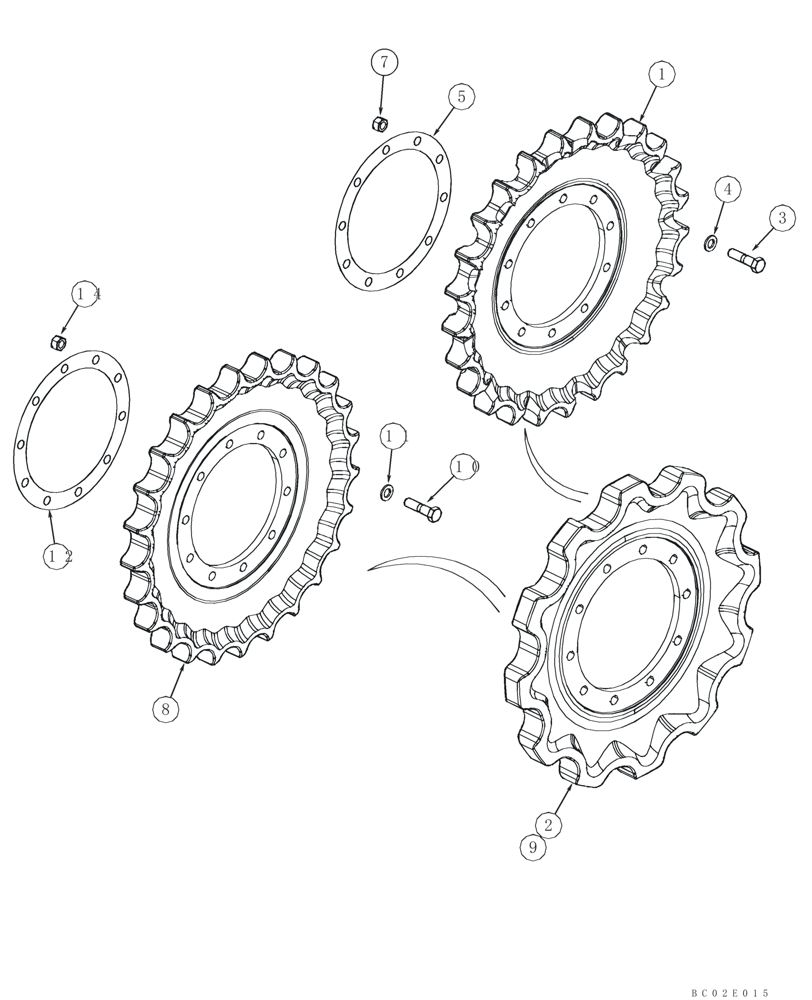

Запчасти Case 850K (05-03) - SPROCKET, TRACK (11) - TRACKS/STEERING

REF

INSTRUCTION

1575 mm (62 INCH) GAUGE LONG TRACK (LT) MODELS

1шт.

1

412164A1

DRIVING SPROCKET

25Teeth; LT Models; Standard Case Lubricated Track (CLT); Not Illustrated

2шт.

1

404060A1

DRIVING SPROCKET

25Teeth Relieved; LT Models; 57 and 62 gauge; Replaces 412166A1; RECOMMENDED FOR PACKING CONDITIONS ONLY

2шт.

2

414799A1

DRIVING SPROCKET

12Teeth; LT Models; Used on Models With Extended Life Track Chain (ELT); With 57" & 62" between sprocket centers, Serial Range: side-side

2шт.

3

R56341

BOLT

3/4 x 3

20шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

5

404152A1

SHIM

1шт.

7

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

REF

INSTRUCTION

1778 mm (70 INCH) GAUGE WIDE TRACK (WT) OR LOW GROUND PRESSURE (LGP) MODELS

1шт.

8

412061A1

DRIVING SPROCKET

25Teeth; WT (Wide Gage) or LGP Models; Standard Case Lubricated Track (CLT)

2шт.

8

403559A1

DRIVING SPROCKET

25Teeth Relieved; WT (Wide Gage) or LGP Models; 67 and 70 Gauge ; Not Illustrated; Replaces 412163A1; RECOMMENDED FOR PACKING CONDITIONS ONLY

2шт.

9

414798A1

DRIVING SPROCKET

12Teeth WT (Wide Gage) or LGP Models; Used on Models With Extended Life Track Chain (ELT); With 67" & 70" between sprocket centers, Serial Range: side-side

2шт.

10

R56341

BOLT

3/4 x 3

20шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

20шт.

12

404152A1

SHIM

1шт.

14

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

20шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.
