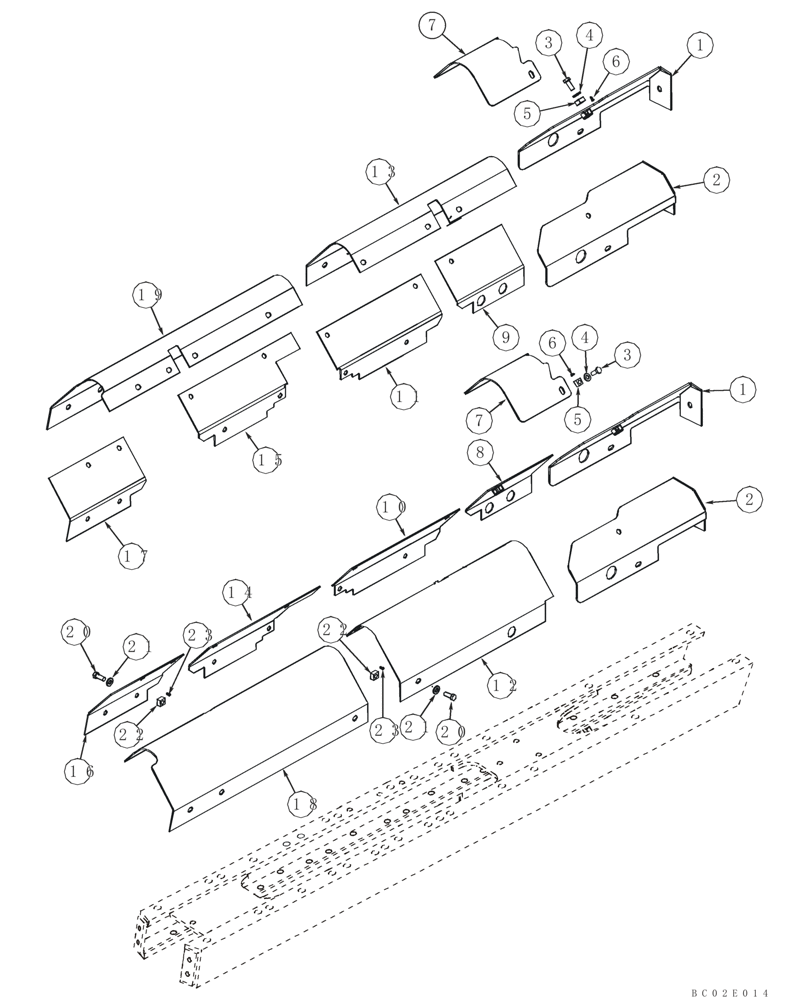

Запчасти Case 850K (05-02) - FRAME, TRACK - COVERS (CLT OR SEALED TRACK CHAIN; IF USED) (11) - TRACKS/STEERING

87420768

Kit, Track Covers; Incl. 1, 2, 7 - 19; Does Not Include 12 mm Spacers; See Ref 30 Fig 09-08

1шт.

1

435817A1

COVER ASSY

Idler; Left-Hand

2шт.

2

435818A1

COVER ASSY

Idler; Right-Hand

2шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

5

129-857

SQUARE NUT,Sq, 1/2"-13

4шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

7

436969A1

COVER ASSY

Idler

2шт.

8

430887A1

COVER ASSY

Right-Hand; Inner

1шт.

9

430885A1

COVER ASSY

Left-Hand; Inner

1шт.

10

430883A1

COVER ASSY

Right-Hand; Inner

1шт.

11

430882A1

COVER ASSY

Left-Hand; Inner

1шт.

12

430891A1

COVER ASSY

Right-Hand; Outer

1шт.

13

430890A1

COVER ASSY

Left-Hand; Outer

1шт.

14

430881A1

COVER ASSY

Right-Hand; Inner

1шт.

15

430880A1

COVER ASSY

Left-Hand; Inner

1шт.

16

430879A1

COVER ASSY

Right-Hand; Inner

1шт.

17

430878A1

COVER ASSY

Left-Hand; Inner

1шт.

18

430889A1

COVER ASSY

Right-Hand; Outer

1шт.

19

430888A1

COVER ASSY

Left-Hand; Outer

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

44шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

44шт.

22

129-857

SQUARE NUT,Sq, 1/2"-13

44шт.

23

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

44шт.
