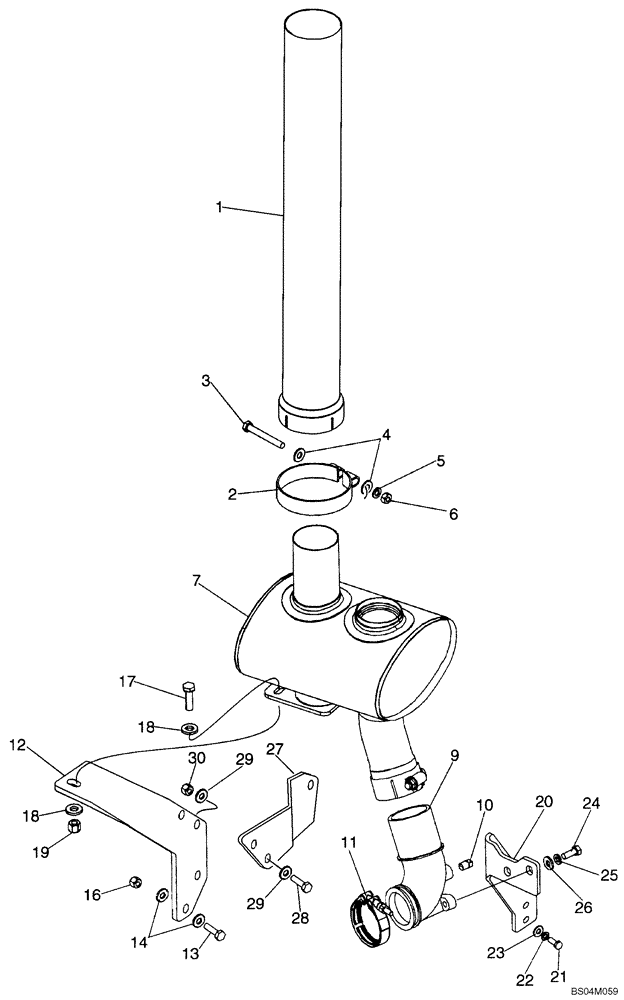

Запчасти Case 850K (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

R27699

CLAMP,114.3mm

1шт.

3

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87311625

MUFFLER

Includes Clamp

1шт.

9

87416402

ELBOW

Exhaust Outlet; Replaces J910992 Elbow Used On Some Models

1шт.

10

217-506

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1шт.

11

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

12

87450269

BRACKET, SUPPORTING

Muffler Support

1шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

14

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

20

87435850

BRACKET, SUPPORTING

1шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

23

892-11008

LOCK WASHER,8mm ID

No Longer Used In This Location

2шт.

24

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

25

892-11010

LOCK WASHER,M10

No Longer Used In This Location

2шт.

26

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

27

87450953

BRACKET, SUPPORTING

Hose Support

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

29

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

21

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
