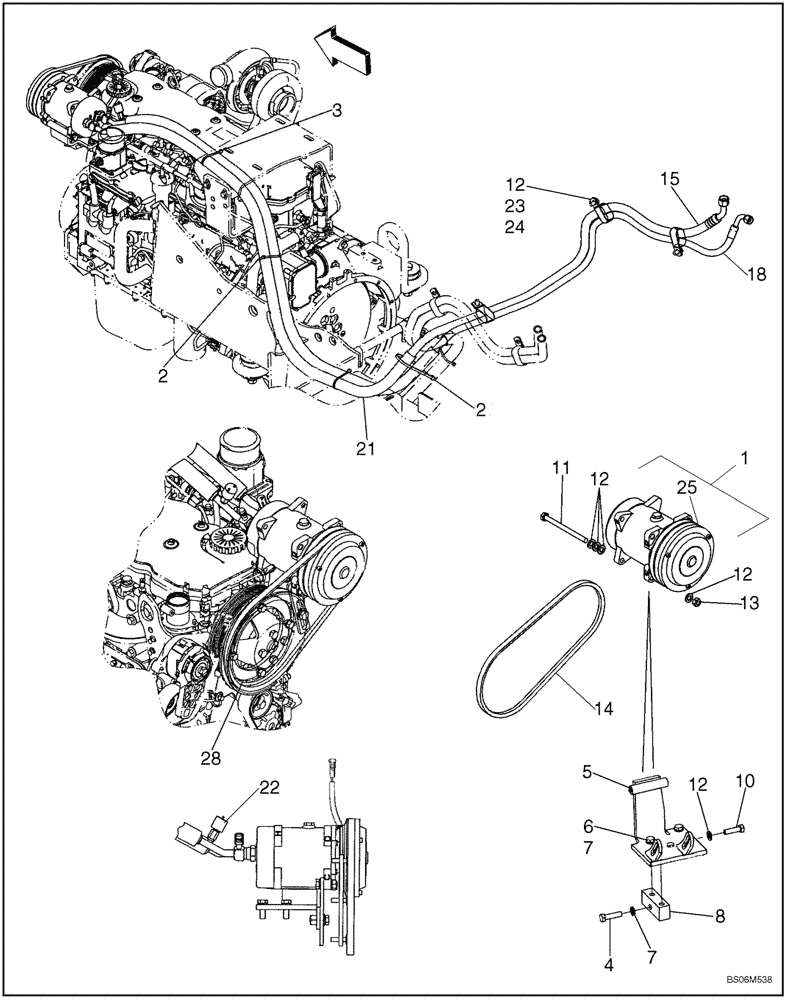

Запчасти Case 850K (09-35) - CAB- AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

86993462

AIRCOND. COMPRESSOR

12 v, Incl 25

1шт.

1

86993462GV

AIRCOND. COMPRESSOR

Value, 12V, Incl 25

1шт.

86993462R

REMAN-COMPRESSOR

850K SERIES 3 TIER 2 (12/06-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

3

252765A1

ORNAMENTAL STRIP

1шт.

4

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

5

87448032

SUPPORT

Bracket, Compressor Support

1шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

7

892-11010

LOCK WASHER,M10

6шт.

8

87453233

SUPPORT

Brace Freon Comp Bracket

1шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

11

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

379461A1

BELT,12.70 mm W x 950.00 mm L

Air Conditioner Drive

1шт.

15

87610307

HOSE ASSY.

A/C Suction Hose

1шт.

18

87610306

HOSE ASSY.

A/C Discharge Hose

1шт.

21

87610309

CONDUIT

Convoluted Conduit ; If Used

2шт.

22

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulated, 25.4 mm Dia

3шт.

25

135324A1

CLUTCH

Incl in 1

1шт.

28

87439610

PULLEY

AC Pulley Spacer

1шт.

NSS

NOT SOLD SEPARAT

Pulley And Hardware Comes On With The Engine

1шт.
