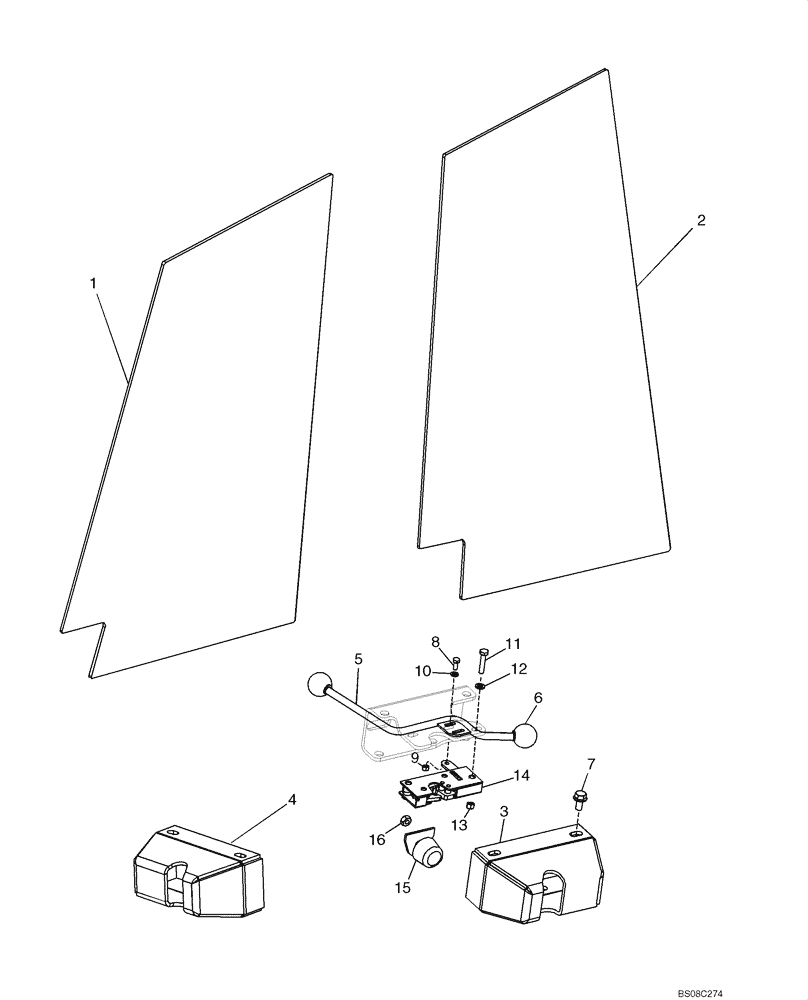

Запчасти Case 850K (09-27B[01]) - CAB - GLASS AND WINDOWS (LEVERS & COVERS) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

The Lever Comes Out Through the Back

1шт.

1

87372047

CAB GLASS

L.H. Side

1шт.

2

87372048

CAB GLASS

R.H. Side

1шт.

3

87691829

DOOR COVER

L.H.

1шт.

4

87691830

DOOR COVER

R.H.

1шт.

5

87691828

LEVER

Is Used For Both the L.H. and R.H.

2шт.

6

87577757

KNOB

KNOB

4шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

25шт.

8

86632597

BOLT,M5 x 0.8 x 15.65mm, Cl 8.8

5шт.

9

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

5шт.

10

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

11

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

6шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

13

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

14

87371997

LATCH

Hold Open

2шт.

15

87550959

BUMPER

BUMPER, Rubber

4шт.

16

425-114

NUT,1/4"-28, G5

4шт.
