Запчасти Case 850K (02-03) - RADIATOR - MOUNTING (02) - ENGINE

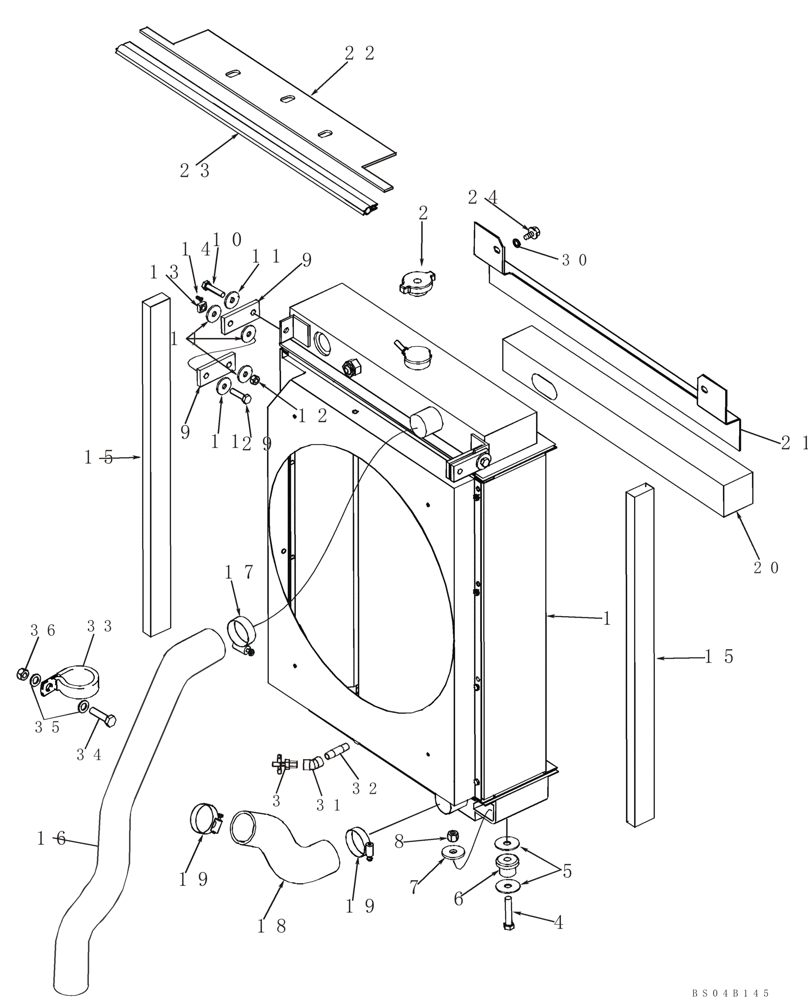

Схема запчастей Case 850K - (02-03) - RADIATOR - MOUNTING (02) - ENGINE
3
7
35
9
33
9
20
36
30
11
15
23
21
16
12
22
17
15
11
5
19
24
2
14
29
31
32
bs04b145
11
1
10
34
13
19
8
4
6
18

Артикул

Название

Примечание

Количество

1

87449353

RADIATOR

See Figure 02-04

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

1/4

1шт.

4

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

5

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

4шт.

6

R29799

SHOCK ABSORBER

Rubber

2шт.

7

D25022

WASHER

2шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

9

87441007

STRAP

4шт.

11

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

10шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

2шт.

13

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

M10

2шт.

14

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

15

R53624

PAD

2 x 31-5/16; Adhesive Back

2шт.

16

87450954

LARGE HOSE,44.50 mm ID x 390.70 mm, SAE 20R4 CLASS C

HOSE,LARGE

1шт.

17

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

18

87431917

LARGE HOSE,58.00 mm ID x 214.20 mm, SAE 20R4 CLASS C

HOSE,LARGE

1шт.

19

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

2шт.

20

366861A2

SEAL

690 mm (27-3/16 in); Adhesive Back

1шт.

21

87418012

PLATE

Lower Radiator Seal

1шт.

22

87439934

PLATE

Lower Radiator

1шт.

23

432943A1

SEAL

673 mm

1шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

29

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

30

892-11008

LOCK WASHER,8mm ID

2шт.

31

87025801

ELBOW

45 Deg. Elbow

1шт.

32

221-1137

PIPE,Nipple, 1/4" NPT x 2"

1шт.

33

R57155

CLAMP

Upper Radiator Hose

1шт.

34

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

36

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

10

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

Выбрано товаров: 32
