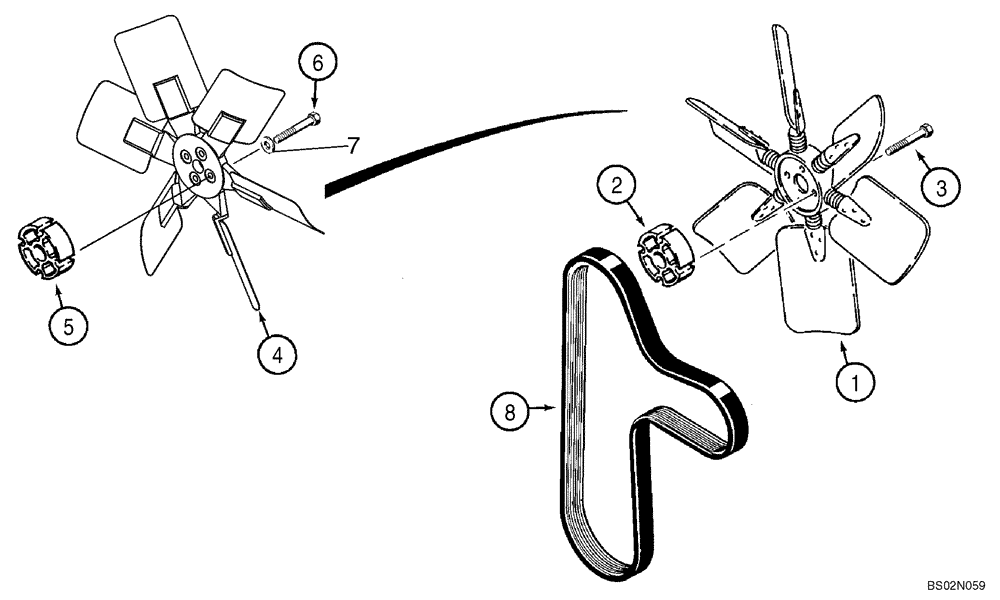

Запчасти Case 850K (02-02) - FAN - FAN BELT (02) - ENGINE

1

445656A1

FAN

550 mm, Reversible; If Equipped

1шт.

2

A184544

SPACER

24 mm; Used With Ref 1

1шт.

3

193425A1

FLANGE BOLT,M10 x 1.5 x 50mm

M10 x 50; Use with Ref 1

4шт.

4

A173557

FAN

Pusher; If Equipped

1шт.

5

A184544

SPACER

24 mm; Used With Ref 4

1шт.

6

84437627

BOLT,M10 x 55mm, Cl 10.9

Use with Ref 4; Replaces 827-10055

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

87564117

V-BELT,27.92 mm W x 1778.00 mm L, 8 Ribs

Fan, Replaces 2853208, Used on Some Models

1шт.
