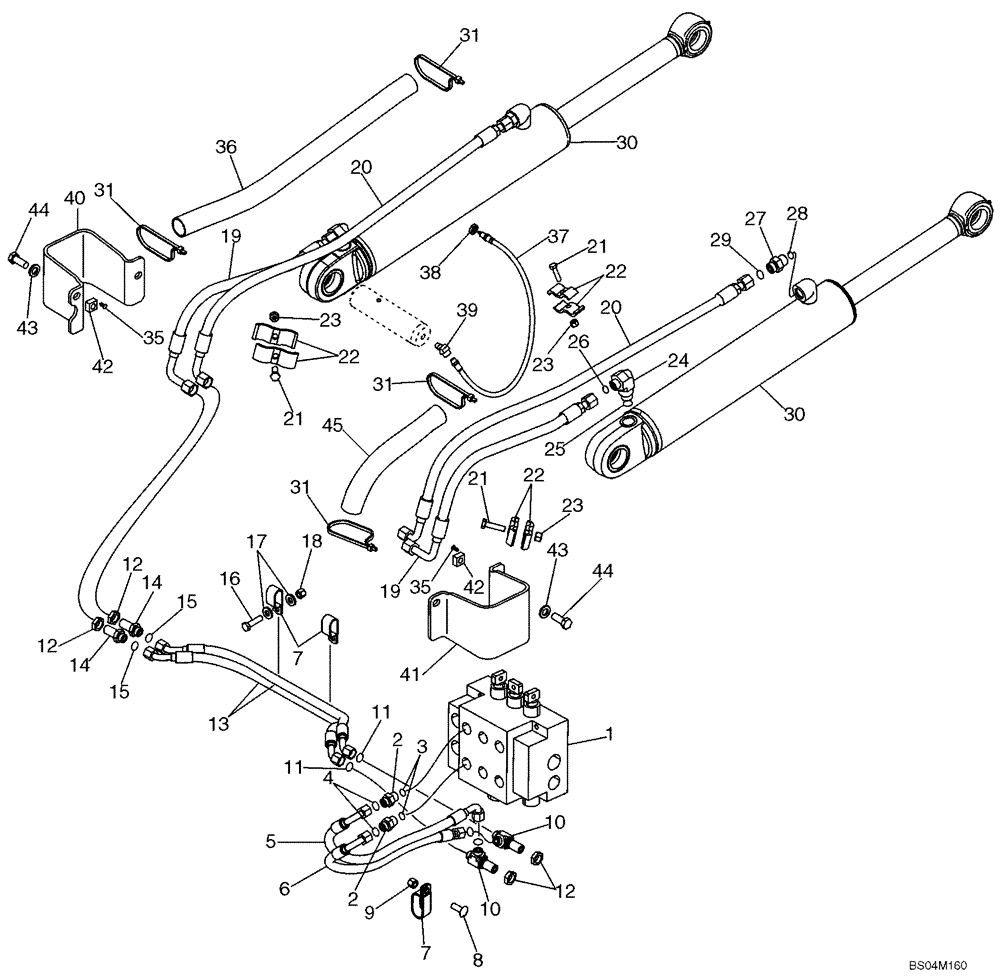

Запчасти Case 850K (08-05) - HYDRAULICS - LIFT CIRCUIT (08) - HYDRAULICS

1

87311632

HYDRAULIC VALVE

Three Spool; See Figure 08-18

1шт.

1

87311631

HYDRAULIC VALVE

Four Spool; See Figure 08-18

1шт.

2

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

5

433794A1

HOSE ASSY.

715 mm (28-3/16 in); Upper Port Of Control Valve

1шт.

6

433795A1

HOSE ASSY.

625 mm (24-5/8 in); Lower Port Of Control Valve

1шт.

7

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

3шт.

8

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Incl. Ref 11

2шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

13

434860A1

HOSE ASSY.

795 mm (31-5/16 in); Crossover

2шт.

14

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes Ref 15

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

16

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

87325681

HOSE ASSY.

615 mm (24-1/4 in); Closed End; Replaces 434125A1 650 mm (25-5/8 in) Hose

2шт.

20

87325680

HOSE ASSY.

1060 mm (41-3/4 in); Rod End; Replaces 434124A1 1095 mm (43-1/8 in) Hose

2шт.

21

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

22

434130A1

HOSE CLAMP

8шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

24

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 25, 26

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

26

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

27

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes Ref 28, 29

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

30

417854A1

CYLINDER ASSY.

89 ID x 395 mm Stroke; Lift; See Figure 08-11

2шт.

30

87361535R

REMAN-HYD CYLINDER

850K SERIES 3 CRAWLER TIER 2 (12/06-), Reman for New PN 417854A1

2шт.

30

87361535C

CORE-HYD CYLINDER

Return Number

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

4шт.

35

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

36

87432366

SLEEVE

1000 mm (39-3/8 in)

2шт.

37

L74161

HOSE,3.56mm ID x 533.4mm L, SAE 100R7

Grease; 533 mm (21 in); Includes 1/8 NPSM Thrd Grease Fitting; Attaches To Mounting Pin; Used With 217-1084 45 deg Elbow; If Used

2шт.

37

87314982

HOSE

Grease; 330 mm (13 in); Includes 1/8 NPSM Thrd Grease Fitting; Attaches To Mounting Pin; Used With 217-1014 90 deg Elbow; If Used

2шт.

38

F53473

LOCK NUT,1/8-27 NPSM

2шт.

39

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Used with L74161 Grease Hose; If used

2шт.

39

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Used with 87314982 Grease Hose; If used

2шт.

40

87417514

PROTECTIVE COVER

Left Hand

1шт.

41

87417515

PROTECTIVE COVER

Right Hand

1шт.

42

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage, M12

4шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

44

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

45

87432364

SLEEVE

550 mm (21-11/16 in)

2шт.
