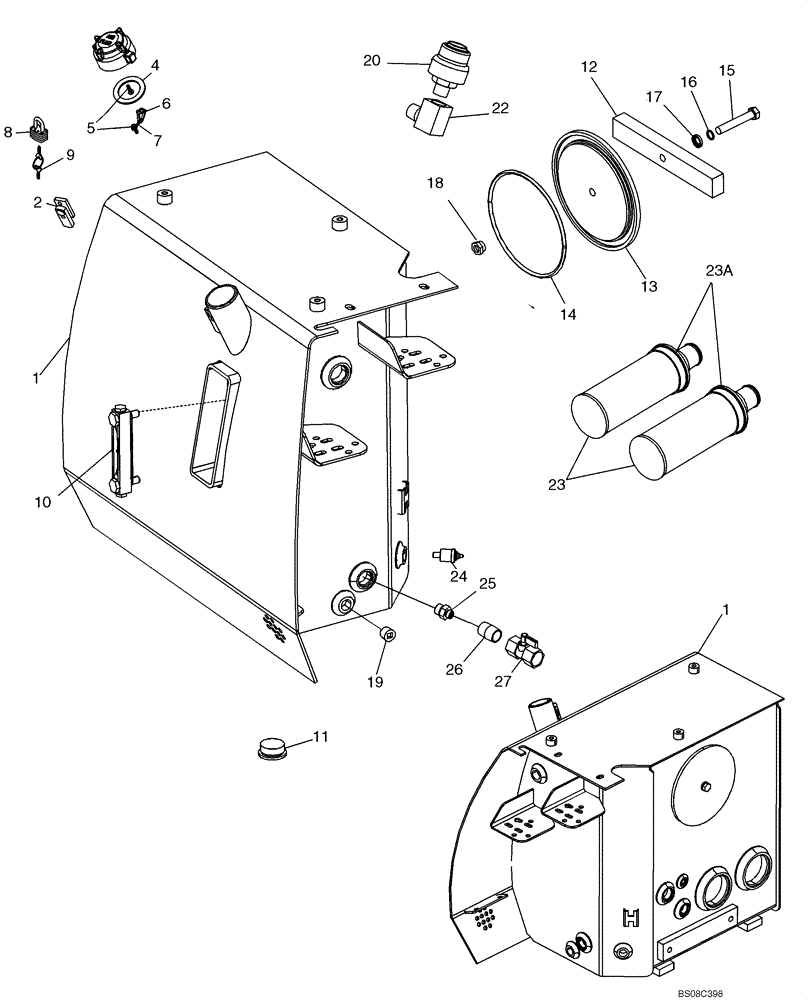

Запчасти Case 850K (08-01A) - RESERVOIR, HYDRAULIC - COVERS (IF USED) (08) - HYDRAULICS

REF

INSTRUCTION

DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANK AND THE NOTCH BY THE DOOR, THESE HAVE THEM; FOR OTHER OPTIONS SEE FIGURE 08-01

1шт.

1

87644048

TANK, HYDRAULIC OIL

TANK, HYDRAULIC; Complete, Incl. Ref 2 - 19

1шт.

2

R46704

BRACKET

Tab; Fill Tube; Weld-On

1шт.

3

L128669

CAP

Fill Tube

1шт.

4

87557921

GASKET,43mm ID x 61mm OD x 3mm Thk

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

2шт.

6

R48634

FASTENER

Hook

1шт.

7

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

8

D93753

PADLOCK

Incl. 9

1шт.

9

R29555

KEY

For Master Padlock Only

2шт.

9

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

10

226456A1

LEVEL GAUGE

Sight; Component Parts Not Serviced Separately; Apply 354-199, Serial Range: Sealant-Threads

1шт.

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Used With Gauge

4шт.

11

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

1шт.

12

L50741

BAR

Holddown

1шт.

13

L128352

COVER

Access

1шт.

14

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

15

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

17

L78045

WASHER

1шт.

18

131-510

LOCK NUT,1/2"-13

1шт.

19

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Use With Loctite 592 (345-87)

1шт.

20

R42714

BREATHER

Use With Loctite 592 (345-87)

1шт.

22

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

Use With Loctite 592 (345-87)

1шт.

23

426784A1

FILTER STRAINER

Strainer, Suction; Incl. Ref 23A

2шт.

23a

84153256

O-RING,3mm Thk x 83mm ID, 70 Duro

O-RING, Replaces 510137, .139 x 3.234 236 5 Used On Some Models

1шт.

24

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil; Use With Loctite No. 592

1шт.

25

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

1шт.

REF

INSTRUCTION

FOLLOWING COMPONENTS FOR USE WITH DRAIN ECOLOGY OPTION

1шт.

26

221-1185

FITTING

.5 x 1.125

1шт.

27

86984713

SHUT-OFF VALVE

1шт.

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Cooler to Tank; Not Illustrated

1шт.
