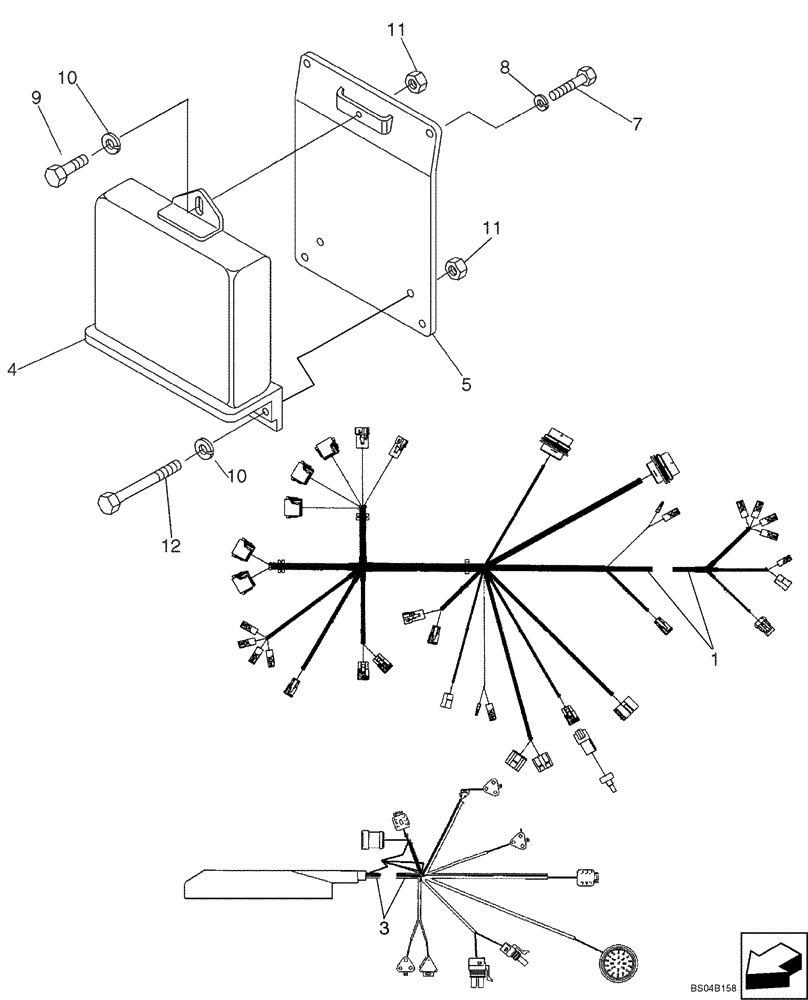

Запчасти Case 850K (04-16) - HARNESS, CAB - HARNESS, MICROCONTROLLER (04) - ELECTRICAL SYSTEMS

87411763

WIRE HARNESS

Cab Main Harness; Incl. 87410122 Harness, (2) 79113969 Proximity Sensors, (2) 79113970 Cables, 87414786 Fan Speed Switch, 87414787 Heater Switch

1шт.

1

87410122

WIRE HARNESS

Harness Main, Cab

1шт.

3

426946A1

WIRE HARNESS

Intermediate Microcontroller Harness (426946A1); Attaches to Main Microcontroller Harness (419302A1)

1шт.

4

87329249

CONTROL UNIT

Microprocessor Control Box; Component Parts Not Serviced Separately, Replaces 373142A1

1шт.

87329249R

REMAN ELECT CONTROL

850K TIER 2 (1/05-)

1шт.

87329249C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

87400643

PLATE

1шт.

6

76067456

SEAL

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

14496534

WASHER,M8

x 17

4шт.

9

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

10

12035670

LOCK WASHER

3шт.

12

14303921

HEX SOC SCREW,M6 x 70mm, Cl 8.8

2шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.
