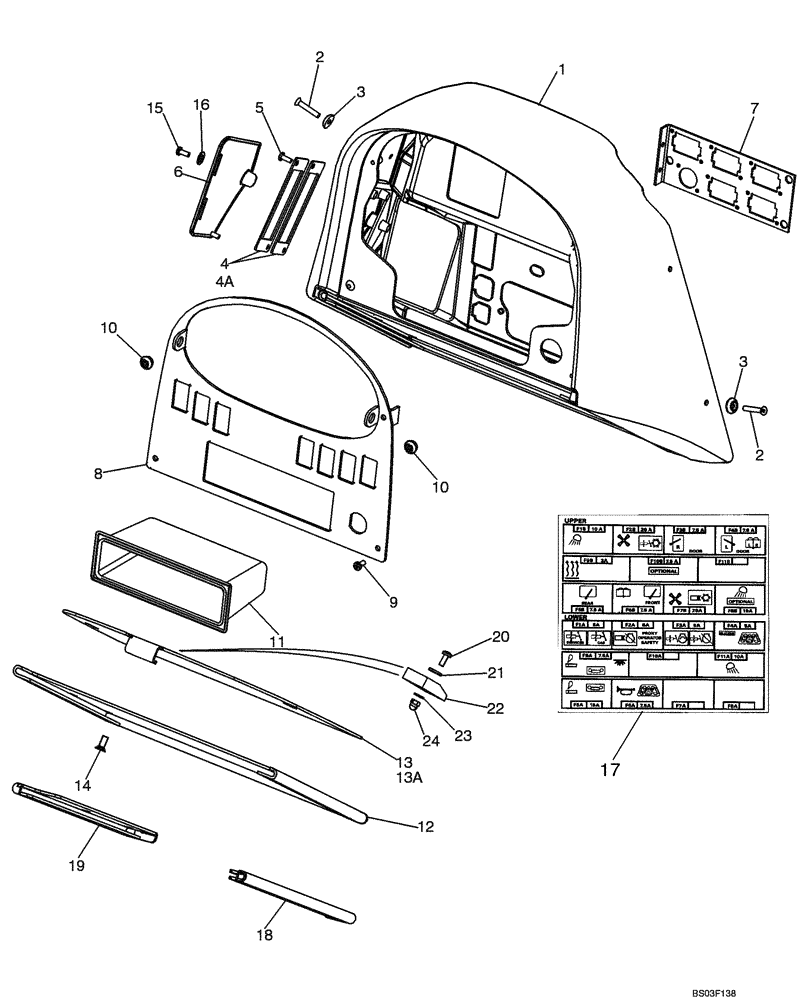

Запчасти Case 850K (04-16) - CONSOLE, FRONT - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS

1

86984891

CONSOLE

Front Console

1шт.

2

543-713

SCREW,Phil Flat Hd, M6 x 35, 4.8

M6 x 35

4шт.

3

79076208

WASHER

Nylon

4шт.

4

86989589

MOUNTING PARTS

Fuse Box

2шт.

4a

87416387

PROTECTIVE COVER

Inner, Weather Tight; Not Illustrated

2шт.

5

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4.8

5шт.

6

86984895

PROTECTIVE COVER

Outer; Fuse Access

1шт.

7

86989588

PLATE

Harness Bulkhead Plate

1шт.

8

87416349

FRONT PLATE

Face Plate, Front Console

1шт.

9

540-712

SCREW,Cross Pan Hd, M5 x 12

M5 x 12; 4.8

2шт.

10

71416459

PLUG,M9

2шт.

11

4417913

CONTAINER

Storage Container

1шт.

12

86984896

RETAINING PLATE

Lockup, Door Storage

1шт.

13

86984901

DOOR ASSY.

Lockup Door

1шт.

13a

87426769

BUSHING

Lockup Door

2шт.

14

843-1512

SCREW,Flat , M5 x 12mm, Cl 4.8

M5 x 12; 4.8

6шт.

15

540-712

SCREW,Cross Pan Hd, M5 x 12

M5 x 12

1шт.

16

87428441

RETAINER

1шт.

17

87415509

DECAL

Fuse

1шт.

18

87423749

GUIDE

Lock Up Door; Right Hand; Use 345-199 Adhesive Thread Loctite 243

1шт.

19

87423748

GUIDE

Lock Up Door; Left Hand; Use 345-199 Adhesive Thread Loctite 243

1шт.

20

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

87423750

BUMPER

Rubber

1шт.

23

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

1шт.

24

87423751

CROWN NUT

M4

1шт.
