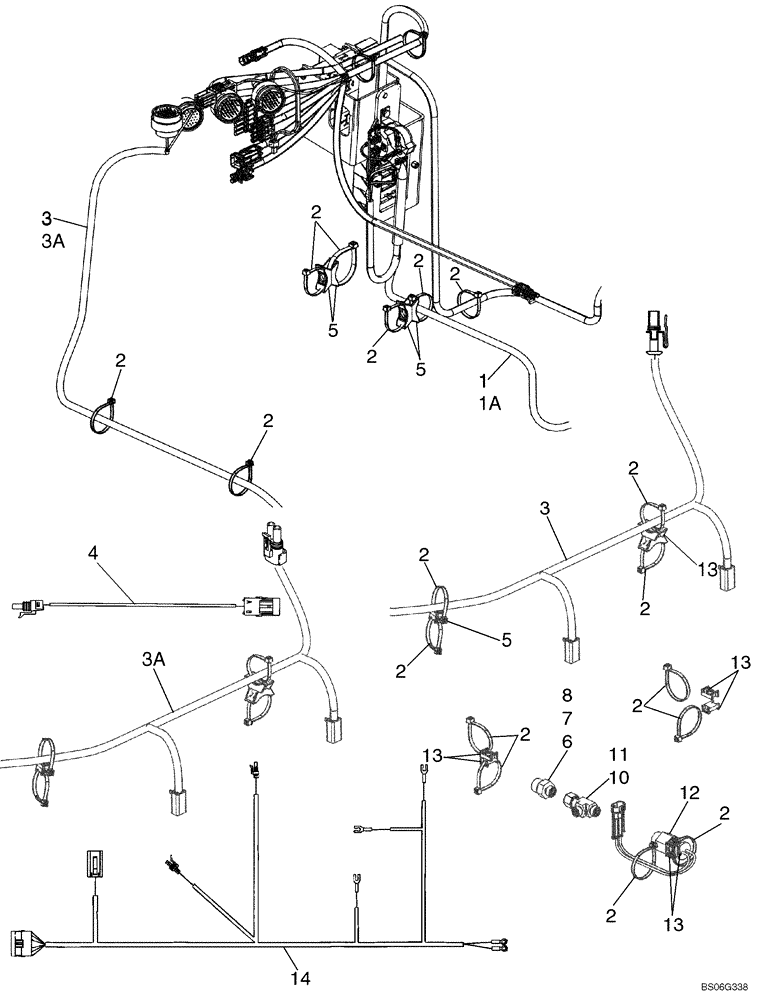

Запчасти Case 850K (04-11) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS

1

87438048

WIRE HARNESS

Main, No Longer Available, For Service Order 87319008 Main Harness and 87318846 Windshield and Door Washer Harness (Models With Cab) (Ref 16)

1шт.

1a

87319008

WIRE HARNESS

Main, Replaces 87438048

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

3

87438047

WIRE HARNESS

MicroController To Pump Motor; No Longer Available, Replaced By 419302A1 Harness (REF3A) And 87310025 Harness (REF 4)

1шт.

3a

419302A1

WIRE HARNESS

MicroController To Pump Motor; Along With 87310025 Harness (REF 4) Replaces 87438047 Harness

1шт.

4

87310025

WIRE HARNESS

Jumper Harness; Engine Speed Pickup

1шт.

5

86982398

SPACER

Nylon Spacer; At Fuse Block, Diodes and Cab and Microcontroller Areas

1шт.

6

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

1/4 ORFS x 1/2 ORB; Incl. Ref 7, 8

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

10

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

At Tandem Pump; Incl. Ref 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

87403648

PRESSURE SWITCH

Charge; At Tee On Tandem Pump

1шт.

13

86982400

SPACER

1шт.

14

419176A1

WIRE HARNESS

Rear

1шт.
