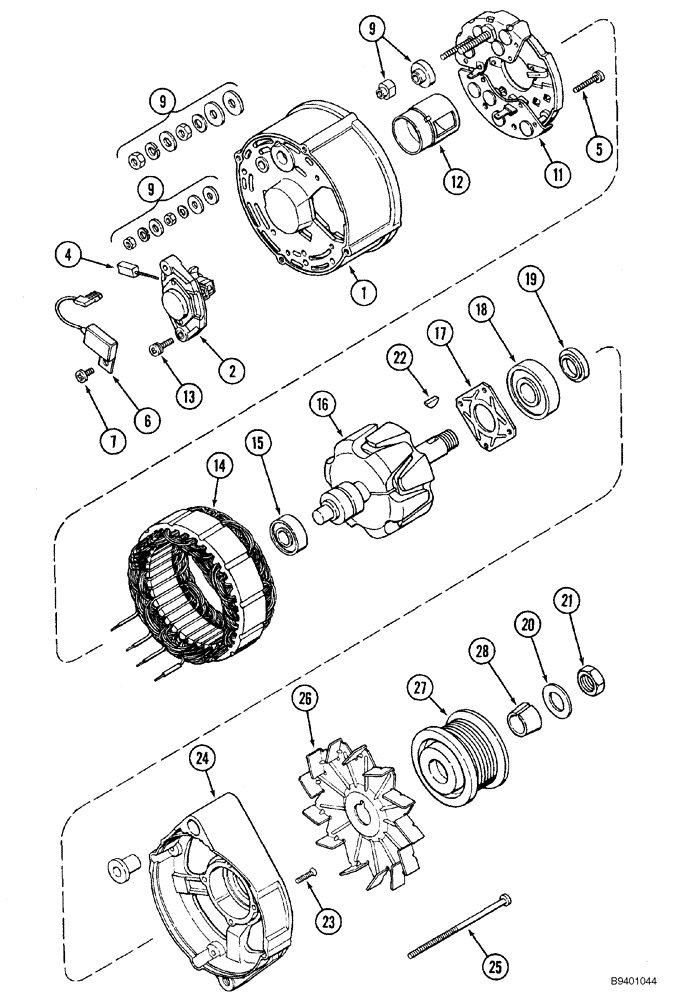

Запчасти Case 850K (04-03) - ALTERNATOR ASSY (MODELS WITH AIR CONDITIONING) (04) - ELECTRICAL SYSTEMS

A187623

ALTERNATOR

12V, 95 amp; New; Incl. Ref 1 - 25

1шт.

AR187623

REMAN-ALTERNATOR

Reman for New P/N A187623

1шт.

AC187623

CORE-ALTERNATOR

Return Part Number

1шт.

A187623GV

ALTERNATOR

Value, 12V, 95 Amp

1шт.

1

A187903

COVER

Housing

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set of Two

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

With Washer

2шт.

6

3079134R1

CAPACITOR

1шт.

7

1964969C1

SCREW

1шт.

9

A187904

MULTIPOLE CONNECTOR

Kit, Terminal Connecting Parts

1шт.

11

A187905

DIODE ELEMENT

Rectifier

1шт.

12

A187899

INNER SHIELD

Shield

1шт.

13

A187504

SCREW

2шт.

14

A187902

STATOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

Small, Inner

1шт.

16

A187900

ROTOR

1шт.

17

A187901

FIXING PLATE

Plate

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

Large, Outer

1шт.

3078897R1

SET OF PARTS

Kit, Retainer; Incl. Ref 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key; Not Illustrated; Not Used

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A187994

HOUSING

Housing; Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Order Separately

1шт.

27

J908560

PULLEY

Order Separately

1шт.

28

J908563

RETAINER

Order Separately

1шт.
