(02-19) - CYLINDER HEAD - COVERS

Запчасти Case 850K (02-19) - CYLINDER HEAD - COVERS (02) - ENGINE

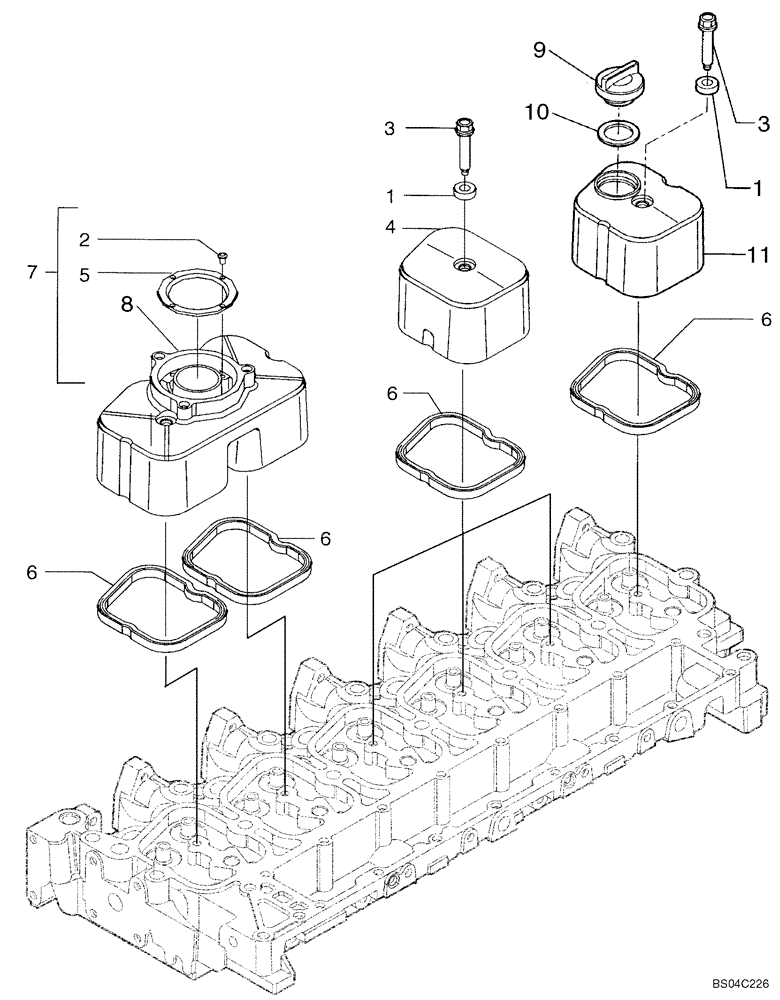

Схема запчастей Case 850K - (02-19) - CYLINDER HEAD - COVERS (02) - ENGINE
6
5
10
8
3
11
6
9
7
4
1
6
3
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

2

2830281

SELF-TAP SCREW,M2.9 x 6.5

4шт.

3

4895214

SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8

6шт.

4

2852032

VALVE COVER

4шт.

5

2830775

BAFFLE

1шт.

6

2852033

GASKET,7mm Thk

6шт.

7

2830784

VALVE COVER

Incl. Ref 2, 5, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Cover

1шт.

9

4895202

FILLER CAP

1шт.

10

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

Alternate Part to 4892808

1шт.

10

4892808

SEALING RING,Rectangular, M30 x 48 x 2.8 Thk

Ring; Alternate Part to 4895296

1шт.

11

2852894

VALVE COVER

1шт.
