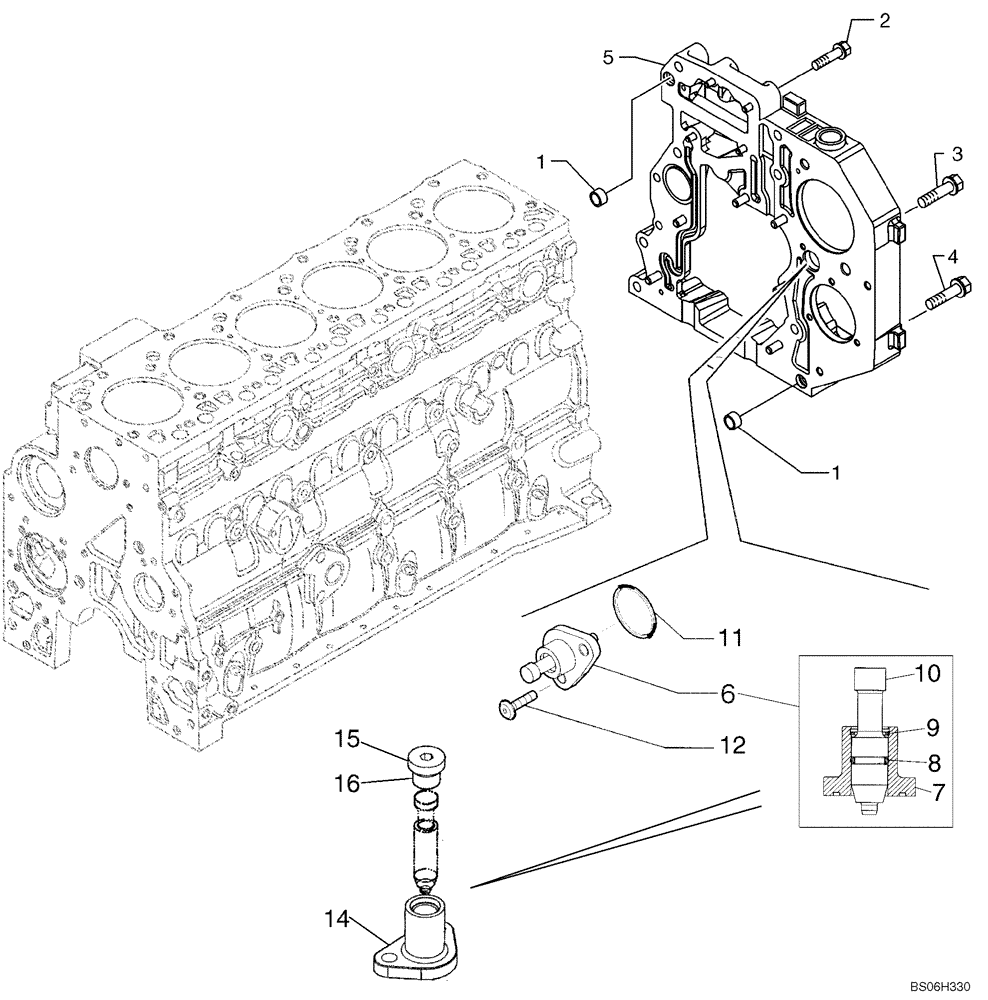

Запчасти Case 850K (02-14) - CYLINDER BLOCK - COVERS (02) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

4

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

2шт.

5

2852620

HOUSING

Rear Gear Housing

1шт.

6

2852515

PIN

Timing; Incl. REF 7 - 10; If Used

1шт.

7

2852518

HOUSING

Timing Pin; No Longer Available; Order Ref 6, 2852515

1шт.

8

2852517

O-RING

1шт.

9

2852759

CIRCLIP

Retaining

1шт.

10

2852516

PIN

Timing; No Longer Available; Order Ref 6, 2852515

1шт.

11

17278781

O-RING

21.95 ID x 1.78; Replaces 2852519

1шт.

12

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

2855287

HOUSING

Timing Pin Housing Assy; Incl. Ref 14-16; If Used

1шт.

14

NSS

NOT SOLD SEPARAT

Timing Pin Housing

1шт.

15

NSS

NOT SOLD SEPARAT

Socket Hex Plug

1шт.

16

489915

O-ring

1шт.
