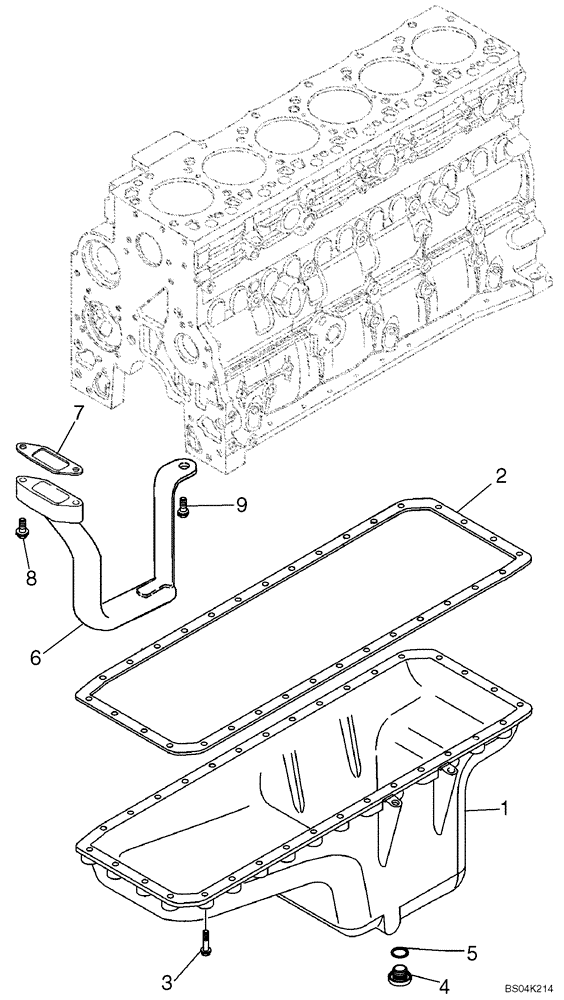

Запчасти Case 850K (02-13) - OIL PAN (02) - ENGINE

1

2853460

ENGINE OIL PAN

1шт.

2

2853461

OIL PAN GASKET SET

Oil Pan

1шт.

3

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

Flange, M8 x 30; Replaces 2853466

32шт.

4

J924148

PLUG,M22 x 1.5

Threaded, Does Not Include Seal, Purchase Seal Separately; Replaces 2853464,4895130

1шт.

5

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Replaces 2853467, 4899059

1шт.

6

2853463

SUCTION PIPE

1шт.

7

2853462

GASKET

1шт.

8

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

9

87015905

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

Replaces 2853465

1шт.
