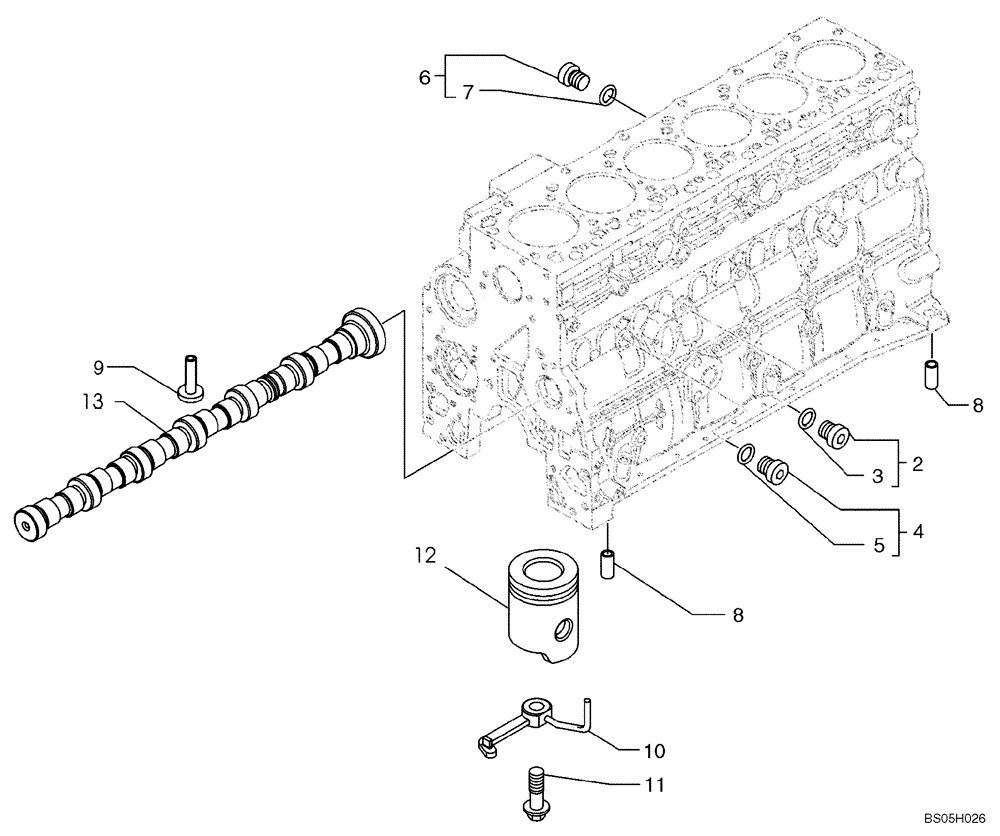

Запчасти Case 850K (02-11) - CYLINDER BLOCK (02) - ENGINE

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref 3

2шт.

3

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

4

4899009

PLUG,M10 x1

Incl. Ref 5

2шт.

5

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref 7

3-2шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895049

DOWEL,M16.05 x 10

2шт.

9

J931623

TAPPET

12шт.

2852202

NOZZLE, PISTON COOLI

Assy; Incl. Ref 10, 11

6шт.

10

2852203

NOZZLE, PISTON COOLI

No Longer Available; Order 2852202, Nozzle Assy

1шт.

11

4894218

SCREW,Special, M8 x 20

1шт.

12

REF

INSTRUCTION

PISTON; See Figure 02-25

1шт.

13

REF

INSTRUCTION

CAMSHAFT; See Figure 02-28

1шт.
